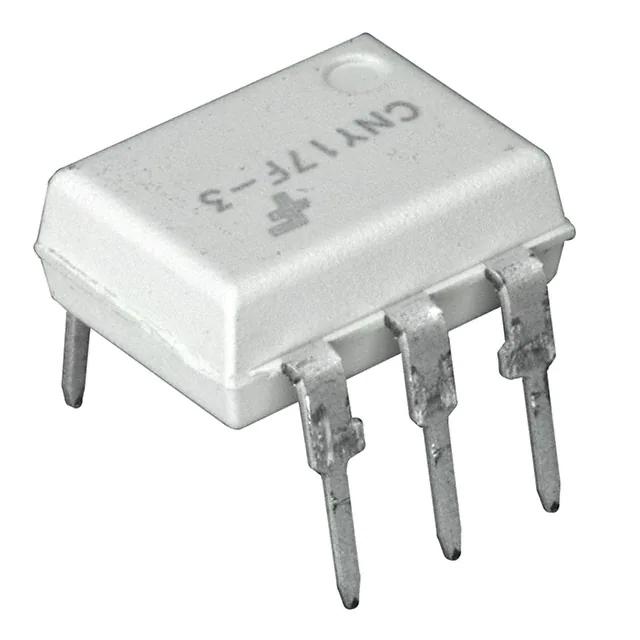

ON Semiconductor CNY17F3M

CNY17F3M ON Semiconductor
CNY17F3M
CNY17F3M
ET14515828
ET14515828
Optoisolators - Transistor, Photovoltaic Output
Optoisolators - Transistor, Photovoltaic Output
ON Semiconductor

Product Information

Maximum Forward Voltage:
1.65V
Output Device:
Phototransistor
Isolation Voltage:
7.5 kVrms
Mounting Type:
Through Hole
Typical Rise Time:
6µs
Input Current Type:
DC
Number of Pins:
6
Number of Channels:
1
Package Type:
MDIP
Maximum Input Current:
60 mA
Typical Fall Time:
24µs
Manufacturer Standard Lead Time:
8 Weeks
Detailed Description:
Optoisolator Transistor Output 4170Vrms 1 Channel 6-DIP
Vce Saturation (Max):
400mV
Operating Temperature:
-40°C ~ 100°C
Input Type:
DC
Package / Case:
6-DIP (0.300", 7.62mm)
Base Part Number:
CNY17
Current Transfer Ratio (Min):
100% @ 10mA
Current Transfer Ratio (Max):
200% @ 10mA
Rise / Fall Time (Typ):
4µs, 3.5µs (Max)
Output Type:
Transistor
Current - DC Forward (If) (Max):
60mA
Number of Channels:
1
Voltage - Output (Max):
70V
Manufacturer:
ON Semiconductor
Current - Output / Channel:
50mA
Voltage - Forward (Vf) (Typ):
1.35V
Voltage - Isolation:
4170Vrms
Mounting Type:
Through Hole
Supplier Device Package:
6-DIP
Turn On / Turn Off Time (Typ):
2µs, 3µs
Packaging:
Tube
Customer Reference:
RoHs Compliant
Checking for live stock

This is manufactured by ON Semiconductor. The manufacturer part number is CNY17F3M. It also carries 1.65v of maximum forward voltage. Its output device includes phototransistor. It has 7.5 kvrms isolation voltage. The product is available in through hole configuration. It has a typical 6µs rise time . Its input is of dc type . It is comprised of 6 pins. It is supplied with 1 channels. The package is a sort of mdip. While its maximum input current includes 60 ma. It has a typical 24µs fall time . It has typical 8 weeks of manufacturer standard lead time. It features optoisolator transistor output 4170vrms 1 channel 6-dip. Feature a maximum Vce saturation of 400mv. The product has -40°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 6-dip (0.300", 7.62mm). Base Part Number: cny17. It has a minimum current transfer ratio of 100% @ 10ma. Excellent efficiency with a maximum current transfer ratio of 200% @ 10ma. The typical rise and fall time of the product is 4µs, 3.5µs (max). Furthermore, it has atransistor output. The maximum DC forward current of the product is 60ma. While the maximum output voltage is 70v. The on semiconductor's product offers user-desired applications. It carries 50ma output or channel current. The typical forward voltage (Vf) of the product is 1.35v. 4170vrms of isolation voltage. 6-dip is the supplier device package value. The product has a typical turn On and Off time of 2µs, 3µs. In addition, tube is the available packaging type of the product.

pdf icon
CNY171M, CNY172M, CNY173M, CNY174M, CNY17F1M, CNY17F2M, CNY17F3M, CNY17F4M, MOC8106M, MOC8107M, 6-Pin DIP Phototransistor Output Optocoupler- No Base Connection Data Sheet(Technical Reference)
pdf icon
CNY17(F)1-4M, MOC8106,07M(Datasheets)
pdf icon
Logo 17/Aug/2017(PCN Design/Specification)
pdf icon
Mult Devices 24/Oct/2017(PCN Packaging)
