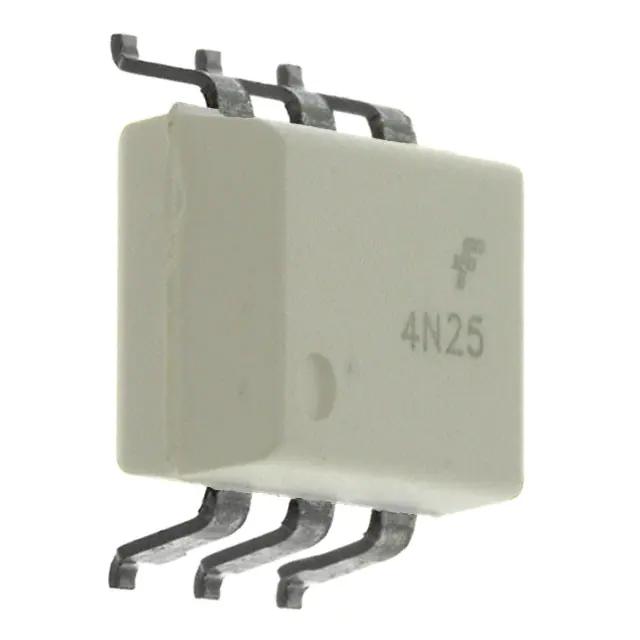

ON Semiconductor 4N25SR2M
Product Information
Maximum Forward Voltage:
1.5V
Output Device:
Phototransistor
Isolation Voltage:
7.5 kVrms
Mounting Type:
Surface Mount
Typical Rise Time:
2µs
Maximum Current Transfer Ratio:
100%
Input Current Type:
DC
Number of Pins:
6
Number of Channels:
1
Package Type:
DIP
Maximum Input Current:
3 A
Logic Output:
Yes
Typical Fall Time:
2µs
Manufacturer Standard Lead Time:
18 Weeks
Base Part Number:
4N25
Detailed Description:
Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
Current Transfer Ratio (Min):
20% @ 10mA
Mounting Type:
Surface Mount
Current - DC Forward (If) (Max):
60mA
Vce Saturation (Max):
500mV
Output Type:
Transistor with Base
Supplier Device Package:
6-SMD
Packaging:
Cut Tape (CT)
Operating Temperature:
-40°C ~ 100°C
Turn On / Turn Off Time (Typ):
2µs, 2µs
Number of Channels:
1
Customer Reference:
Input Type:
DC
Package / Case:
6-SMD, Gull Wing
Voltage - Forward (Vf) (Typ):
1.18V
Voltage - Output (Max):
30V
Voltage - Isolation:
4170Vrms
Manufacturer:
ON Semiconductor
Checking for live stock
FAQs
Yes. You can also search 4N25SR2M on website for other similar products.
We accept all major payment methods for all products including ET14508872. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with 4N25SR2M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optoisolators - Transistor, Photovoltaic Output category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor 4N25SR2M. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor 4N25SR2M.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14508872 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14508872.
Yes. We ship 4N25SR2M Internationally to many countries around the world.
This is manufactured by ON Semiconductor. The manufacturer part number is 4N25SR2M. It also carries 1.5v of maximum forward voltage. Its output device includes phototransistor. It has 7.5 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 2µs rise time . It has a maximum 100% current transfer ratio . Its input is of dc type . It is comprised of 6 pins. It is supplied with 1 channels. The package is a sort of dip. While its maximum input current includes 3 a. It includes a logic output yes . It has a typical 2µs fall time . It has typical 18 weeks of manufacturer standard lead time. Base Part Number: 4n25. It features optoisolator transistor with base output 4170vrms 1 channel 6-smd. It has a minimum current transfer ratio of 20% @ 10ma. The maximum DC forward current of the product is 60ma. Feature a maximum Vce saturation of 500mv. Furthermore, it has atransistor with base output. 6-smd is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The product has -40°c ~ 100°c operating temperature range. The product has a typical turn On and Off time of 2µs, 2µs. It carries dc input type. Moreover, the product comes in 6-smd, gull wing. The typical forward voltage (Vf) of the product is 1.18v. While the maximum output voltage is 30v. 4170vrms of isolation voltage. The on semiconductor's product offers user-desired applications.
