Ratings:
ISO 10993
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
16/30
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
15
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Wire Gauge:
18 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
Enter Number of Feet in Order Quantity
Spool Size:
1000.0' (304.8m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
8 Weeks
Shield Coverage:
100%, 70%

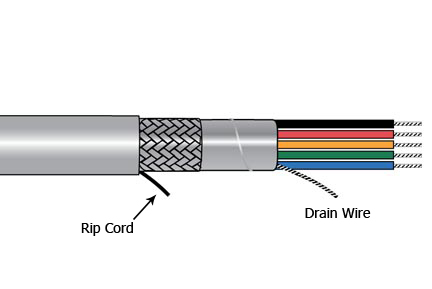

Features:
Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.461" (11.71mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Packaging:
Digi-Spool®, Continuous Spool
Voltage:
300 V
Shield Material:
Suprashield®; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5170/15C
Jacket Color:
Slate
Hazardous Area Certification:
EU
Jacket Colour:
Grey
Minimum Operating Temperature:
-30°C
Conductor Material:
Tin Copper Wire
Series:
5170
Fire Behaviour:
EN 60332-1
Screened/Unscreened:
Screened
American Wire Gauge:
18AWG
Standards/Approvals:
RoHS, IEC, UL, CE, CSA International
Jacket Material:
Polyvinyl Chloride
Number of Cores:
15
Cable CSA:
0.75 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
1000ft
