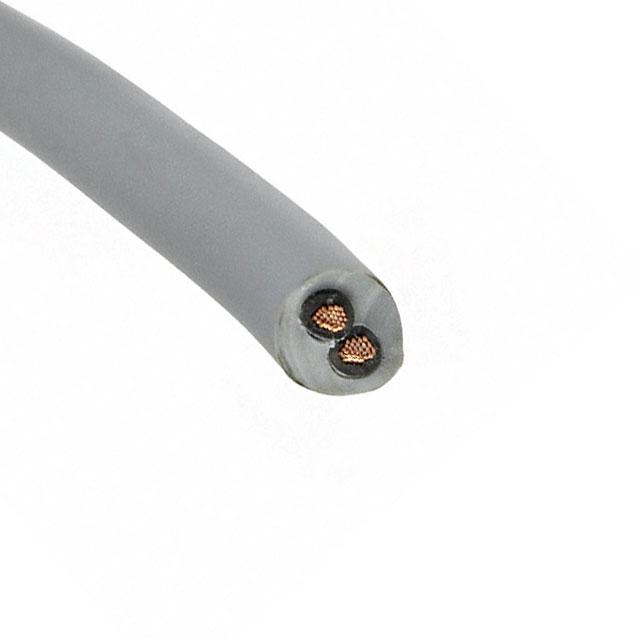

470021YY GE033, Alpha Wire
Product Information
Screened/Unscreened:
Unscreened
Standards Met:
CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006
Control Cable Type:
YY
Voltage Rating:
300/500 V
Conductor Material:
Bare Copper
Maximum Operating Temperature:
(Dynamic) +70 °C, (Static) +80°C
Minimum Bend Radius:
10 x Cable Diameter (Dynamic), 4 x Diameter (Static)
Fire Behaviour:
Flame Retardant
Core Strands:
30/0.20 mm
Sheath Colour:
Grey
Length:
100m
Insulation Material:
PVC
Minimum Operating Temperature:
(Dynamic) -30 °C, (Static) -40°C
Number of Cores:
2
Conductor Resistance:
19.5 Ω/km @ 20°C
Cross Sectional Area:
1 mm²
Outer Diameter:
5.58mm
Sheath Material:
PVC
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
30/0.0079"
Operating Temperature:
-40°C ~ 80°C
Usage:
Industrial
Number of Conductors:
2
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
17 AWG
Shield Type:
-
Jacket (Insulation) Thickness:
0.0276" (0.700mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
328.1' (100.0m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
18 Weeks
Shield Coverage:
-
Features:
Chemical Resistant, Oil Resistant, UV Resistant
Jacket (Insulation) Diameter:
0.220" (5.59mm)
Conductor Material:
Copper, Bare
Series:
Pro-Met®
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
-
ECCN:
EAR99
Base Product Number:
470021YY
Jacket Color:
Gray
Checking for live stock
Alternative products
FAQs
Yes. You can also search 470021YY GE033 on website for other similar products.
We accept all major payment methods for all products including ET17052844. Please check your shopping cart at the time of order.
You can order Alpha Wire brand products with 470021YY GE033 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of UNSHIELDED CABLE 2 CONDUCTORS 1MM² GREY. You can also check on our website or by contacting our customer support team for further order details on UNSHIELDED CABLE 2 CONDUCTORS 1MM² GREY.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17052844 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alpha Wire" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17052844.
Yes. We ship 470021YY GE033 Internationally to many countries around the world.
This is UNSHIELDED CABLE 2 CONDUCTORS 1MM² GREY manufactured by Alpha Wire. The manufacturer part number is 470021YY GE033. Screen Options - unscreened. The product complies with all safety standards, such as ce certified, din en 50290-2-22, din vde 0295 class 5, en 60228 class 5, iec 60332-1, iec certified, reach ec 1907/2006. It includes yy type control cable . Moreover, the product has a nominal 300/500 v voltage rating. The conductor is made from bare copper material. It has a maximum operating temperature of (dynamic) +70 °c, (static) +80°c. It bears 10 x cable diameter (dynamic), 4 x diameter (static) of minimum bend radius. The product has a flame retardant fire behaviour. The core strands are 30/0.20 mm. The sheath has an adorable grey colour. Its accurate length is 100m. It has a robust pvc insulation material. Whereas, the minimum operating temperature of the product is (dynamic) -30 °c, (static) -40°c. The product consists of 2 cores. The conductor has 19.5 ω/km @ 20°c resistance. The product has 1 mm² cross section area. Its outer diameter is 5.58mm. The sheath is constructed from durable and adorable pvc material. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 30/0.0079" conductor strand. The product has -40°c ~ 80°c operating temperature range. The product's typical Applications include uses in industrial. It features 2 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 17 awg. Furthermore, the insulated jacket is a 0.0276" (0.700mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 328.1' (100.0m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 18 weeks standard lead time. The splendid features of the product include chemical resistant, oil resistant, uv resistant. The diameter of the jacket is 0.220" (5.59mm). The conductor is made from copper, bare material. The product pro-met®, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is designated with the ear99 code number. Moreover, it corresponds to 470021yy, a base product number of the product. It comes in nice gray colour.
