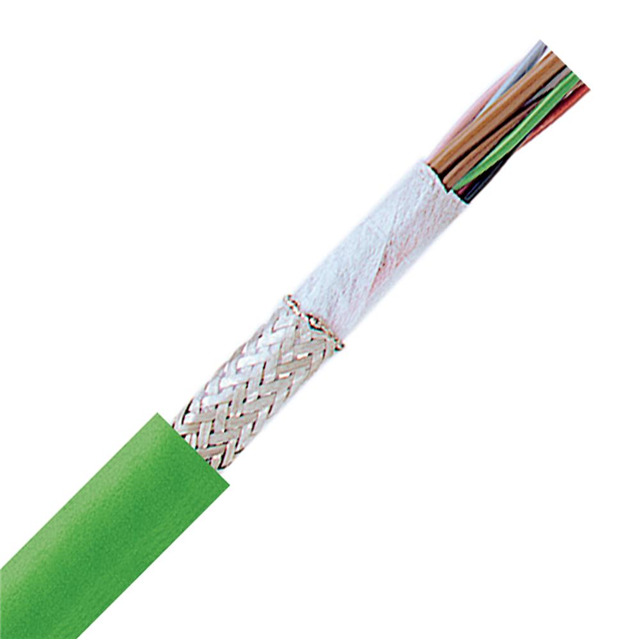

Lapp 10 Core CY Cable Assembly 0.25 mm², 1 mm², Screened
Product Information
American Wire Gauge:
24 AWG
Sheath Material:
Polyurethane PUR
Screen Type:
Braid
Conductor Material:
Tinned Copper
Maximum Operating Temperature:
+90°C
Voltage Rating:
30 V
Cable Shape:
Twisted Pair
Oil Resistant:
Yes
Sheath Colour:
Green
Screened/Unscreened:
Screened
Insulation Material:
PP
Minimum Operating Temperature:
-40°C
Number of Cores:
10
Outer Diameter:
8.8mm
Minimum Bend Radius:
7.5 x 8.8 (Fixed) mm, 7.5 x 8.8 (Flexible) mm
Cross Sectional Area:
0.25 mm², 1 mm²
Ratings:
UL Style 20236
HTSUS:
8544.49.2000
Jacket (Insulation) Material:
Polyurethane (PU)
Operating Temperature:
-
Usage:
Industrial
Number of Conductors:
10 (4 Twisted Pairs + 2)
Conductor Strand:
-
Package:
Bulk
Wire Gauge:
18 AWG, 24 AWG
Shield Type:
Braid
Jacket (Insulation) Thickness:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
100.0' (30.5m)
Conductor Insulation:
Polypropylene (PP)
Shield Coverage:
85%
Features:
Abrasion Resistant, Flame Retardant, Oil Resistant
Jacket (Insulation) Diameter:
0.346" (8.79mm)
Conductor Material:
Copper, Tinned
Series:
ÖLFLEX®
Cable Type:
Multi-Pair
Voltage:
30 V
Shield Material:
Copper, Tinned
ECCN:
EAR99
Jacket Color:
Green
Checking for live stock
FAQs
Yes. You can also search 0036915 on website for other similar products.
We accept all major payment methods for all products including ET14152523. Please check your shopping cart at the time of order.
You can order Lapp brand products with 0036915 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Lapp 10 Core CY Cable Assembly 0.25 mm², 1 mm², Screened. You can also check on our website or by contacting our customer support team for further order details on Lapp 10 Core CY Cable Assembly 0.25 mm², 1 mm², Screened.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14152523 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Lapp" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14152523.
Yes. We ship 0036915 Internationally to many countries around the world.
This is 10 Core CY Cable Assembly 0.25 mm² 1 mm² Screened manufactured by Lapp. The manufacturer part number is 0036915. Features 24 awg - American Wire Gauge. The sheath is constructed from durable and adorable polyurethane pur material. It has a/an braid type screen . The conductor is made from tinned copper material. It has a maximum operating temperature of +90°c. Moreover, the product has a nominal 30 v voltage rating. Moreover, this cable has a twisted pair shape. Additionally, it is oil resistant yes . The sheath has an adorable green colour. Screen Options - screened. It has a robust pp insulation material. Whereas, the minimum operating temperature of the product is -40°c. The product consists of 10 cores. Its outer diameter is 8.8mm. It bears 7.5 x 8.8 (fixed) mm, 7.5 x 8.8 (flexible) mm of minimum bend radius. The product has 0.25 mm², 1 mm² cross section area. It is rated with ul style 20236. It is assigned with possible HTSUS value of 8544.49.2000. Its jacket is made from highly insulated polyurethane (pu) materials. The product's typical Applications include uses in industrial. It features 10 (4 twisted pairs + 2) conductors. It is shipped in bulk package . Moreover, the product has a wire gauge of 18 awg, 24 awg. The item is shielded with a braid. Its typical moisture sensitivity level is not applicable. Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to polypropylene (pp) materials. It covers shielding capability up to 85%. The splendid features of the product include abrasion resistant, flame retardant, oil resistant. The diameter of the jacket is 0.346" (8.79mm). The conductor is made from copper, tinned material. The product ölflex®, is a highly preferred choice for users. It is a typical multi-pair cable. It carries a 30 v of voltage. The product is shielded with a robust copper, tinned shield materials. The product is designated with the ear99 code number. It comes in nice green colour.
