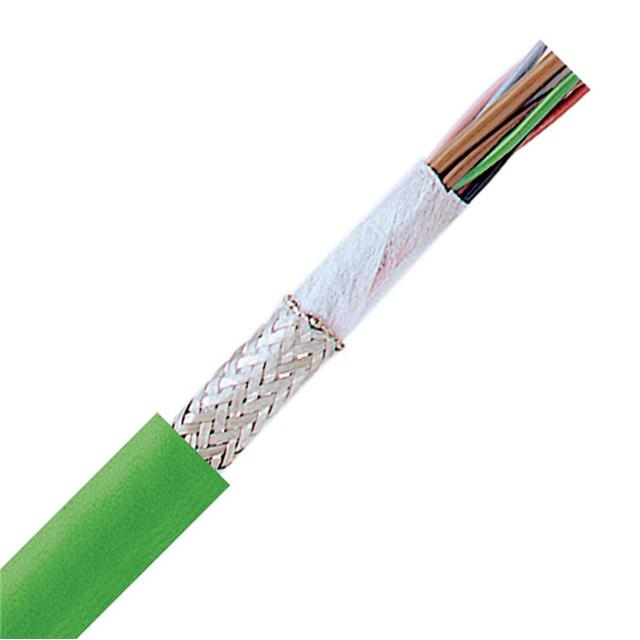

Lapp Lapp Olflex Servo FD 798 CP 8 Core CY Control Cable 0.25 mm², 50m, Screened
Product Information
American Wire Gauge:
24 AWG
Earth Cable:
Yes
Conductor Resistance:
79 Ω/km
Oil Resistant:
Yes
Bedding Material:
PVC
Screened/Unscreened:
Screened
Number of Cores:
8
Outer Diameter:
7.6mm
Standards Met:
CSA Certified, UL
Core Strands:
14/0.14 mm
Maximum Operating Temperature:
+90°C
Cross Sectional Area:
0.25 mm²
Voltage Rating:
30 V
Minimum Bend Radius:
7.5 x Diameter
Length:
50m
Sheath Material:
PUR
Current Rating:
4.5 A
Control Cable Type:
CY
Screen Type:
Braid
Conductor Material:
Copper
Series:
ÖLFLEX SERVO FD
Sheath Colour:
Green
Filler Material:
Non-Wicking Filler
Minimum Operating Temperature:
-40°C
Insulation Material:
PP
Ratings:
UL Style 20236
HTSUS:
8544.49.2000
Jacket (Insulation) Material:
Polyurethane (PU)
Operating Temperature:
-
Usage:
Industrial
Number of Conductors:
8 (4 Pair Twisted)
Conductor Strand:
-
Package:
Bulk
Wire Gauge:
24 AWG
Shield Type:
Braid
Jacket (Insulation) Thickness:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
100.0' (30.5m)
Conductor Insulation:
Polypropylene (PP)
Shield Coverage:
85%
Features:
Abrasion Resistant, Flame Retardant, Oil Resistant
Jacket (Insulation) Diameter:
0.299" (7.60mm)
Conductor Material:
Copper, Tinned
Series:
ÖLFLEX®
Cable Type:
Multi-Pair
Voltage:
30 V
Shield Material:
Copper, Tinned
ECCN:
EAR99
Jacket Color:
Green
Checking for live stock
FAQs
Yes. You can also search 0036921 on website for other similar products.
We accept all major payment methods for all products including ET14052173. Please check your shopping cart at the time of order.
You can order Lapp brand products with 0036921 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Lapp Lapp Olflex Servo FD 798 CP 8 Core CY Control Cable 0.25 mm², 50m, Screened. You can also check on our website or by contacting our customer support team for further order details on Lapp Lapp Olflex Servo FD 798 CP 8 Core CY Control Cable 0.25 mm², 50m, Screened.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14052173 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Lapp" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14052173.
Yes. We ship 0036921 Internationally to many countries around the world.
This is Olflex Servo FD 798 CP 8 Core CY Control Cable 0.25 mm² 50m Screened manufactured by Lapp. The manufacturer part number is 0036921. Features 24 awg - American Wire Gauge. It has an earth cable included yes . The conductor has 79 ω/km resistance. Additionally, it is oil resistant yes . It bedding is made up of pvc material . Screen Options - screened. The product consists of 8 cores. Its outer diameter is 7.6mm. The product complies with all safety standards, such as csa certified, ul. The core strands are 14/0.14 mm. It has a maximum operating temperature of +90°c. The product has 0.25 mm² cross section area. Moreover, the product has a nominal 30 v voltage rating. It bears 7.5 x diameter of minimum bend radius. Its accurate length is 50m. The sheath is constructed from durable and adorable pur material. The product has a current rating of 4.5 a. It includes cy type control cable . It has a/an braid type screen . The conductor is made from copper material. The product ölflex servo fd, is a highly preferred choice for users. The sheath has an adorable green colour. Its filler material is non-wicking filler . Whereas, the minimum operating temperature of the product is -40°c. It has a robust pp insulation material. It is rated with ul style 20236. It is assigned with possible HTSUS value of 8544.49.2000. Its jacket is made from highly insulated polyurethane (pu) materials. The product's typical Applications include uses in industrial. It features 8 (4 pair twisted) conductors. It is shipped in bulk package . Moreover, the product has a wire gauge of 24 awg. The item is shielded with a braid. Its typical moisture sensitivity level is not applicable. Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to polypropylene (pp) materials. It covers shielding capability up to 85%. The splendid features of the product include abrasion resistant, flame retardant, oil resistant. The diameter of the jacket is 0.299" (7.60mm). The conductor is made from copper, tinned material. The product ölflex®, is a highly preferred choice for users. It is a typical multi-pair cable. It carries a 30 v of voltage. The product is shielded with a robust copper, tinned shield materials. The product is designated with the ear99 code number. It comes in nice green colour.
