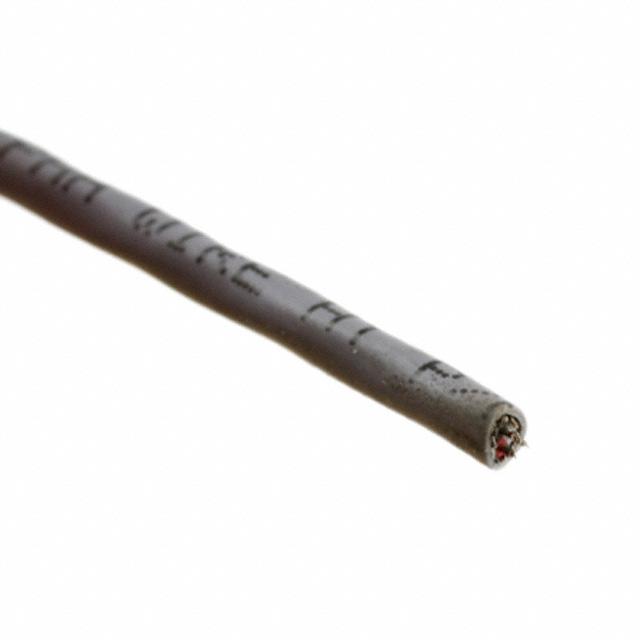

Alpha Wire 3303 SL005
Product Information
American Wire Gauge:
28 AWG
Conductor Resistance:
213.25 Ω/km
Screened/Unscreened:
Screened
Number of Cores:
3
Outer Diameter:
3.15mm
Standards Met:
CE
Core Strands:
7/0.13 mm
Maximum Operating Temperature:
+105°C
Voltage Rating:
600 V
Minimum Bend Radius:
10 x Diameter
Drain Wire:
No
Length:
30m
Sheath Material:
PVC
Control Cable Type:
DEF STAN
Screen Type:
Braid
Conductor Material:
Tinned Copper
Series:
Alpha Essentials
Sheath Colour:
Grey
Cross Sectional Area:
0.09 mm²
Minimum Operating Temperature:
-55°C
Insulation Material:
PVC
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/36
Operating Temperature:
-55°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
3
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
28 AWG
Shield Type:
Braid
Jacket (Insulation) Thickness:
0.0118" (0.300mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
8 Weeks
Shield Coverage:
90%
Features:
-
Jacket (Insulation) Diameter:
0.124" (3.15mm)
Conductor Material:
Copper, Tinned
Series:
-
Cable Type:
Multi-Conductor
Voltage:
600 V
Shield Material:
Copper, Tinned
ECCN:
EAR99
Base Product Number:
3303
Jacket Color:
Slate
Checking for live stock
FAQs
Yes. You can also search 3303 SL005 on website for other similar products.
We accept all major payment methods for all products including ET12232048. Please check your shopping cart at the time of order.
You can order Alpha Wire brand products with 3303 SL005 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Alpha Wire 3303 SL005. You can also check on our website or by contacting our customer support team for further order details on Alpha Wire 3303 SL005.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12232048 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alpha Wire" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12232048.
Yes. We ship 3303 SL005 Internationally to many countries around the world.
This is manufactured by Alpha Wire. The manufacturer part number is 3303 SL005. Features 28 awg - American Wire Gauge. The conductor has 213.25 ω/km resistance. Screen Options - screened. The product consists of 3 cores. Its outer diameter is 3.15mm. The product complies with all safety standards, such as ce. The core strands are 7/0.13 mm. It has a maximum operating temperature of +105°c. Moreover, the product has a nominal 600 v voltage rating. It bears 10 x diameter of minimum bend radius. It has a drain wire included no . Its accurate length is 30m. The sheath is constructed from durable and adorable pvc material. It includes def stan type control cable . It has a/an braid type screen . The conductor is made from tinned copper material. The product alpha essentials, is a highly preferred choice for users. The sheath has an adorable grey colour. The product has 0.09 mm² cross section area. Whereas, the minimum operating temperature of the product is -55°c. It has a robust pvc insulation material. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 7/36 conductor strand. The product has -55°c ~ 105°c operating temperature range. The product's typical Applications include uses in communication, control. It features 3 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 28 awg. The item is shielded with a braid. Furthermore, the insulated jacket is a 0.0118" (0.300mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 8 weeks standard lead time. It covers shielding capability up to 90%. The diameter of the jacket is 0.124" (3.15mm). The conductor is made from copper, tinned material. It is a typical multi-conductor cable. It carries a 600 v of voltage. The product is shielded with a robust copper, tinned shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to 3303, a base product number of the product. It comes in nice slate colour.
