Hazardous Area Certification:
No
Jacket Colour:
Grey
Outside Diameter:
8.51 mm
Conductor Material:
Tin Plated Copper
Series:
Xtra-Guard 1 Performance Cable
Minimum Operating Temperature:
-30°C
Fire Behaviour:
IEC 60332-1 (Flame Retardant)
Core Strands:
16
Armoured:
No
Screened/Unscreened:
Screened
Conductor Type:
Stranded
American Wire Gauge:
18
Voltage:
300 V
Jacket Material:
Polyvinyl Chloride
Number of Cores:
6
Cable CSA:
1.12 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
100ft
Standards/Approvals:
AWM 2464, CSA CMG FT4, UL CM
Ratings:
ISO 10993
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
16/30
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
6
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
18 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
5 Weeks
Shield Coverage:
100%, 70%

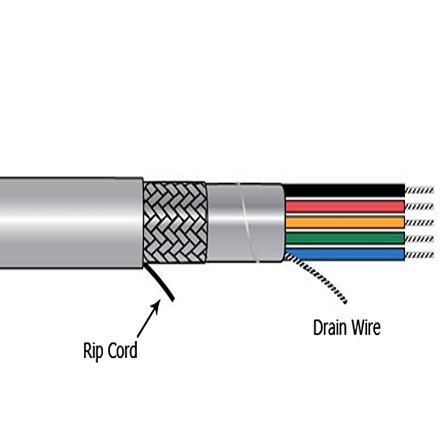

Features:
Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.335" (8.51mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Suprashield®; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5166C
Jacket Color:
Slate
