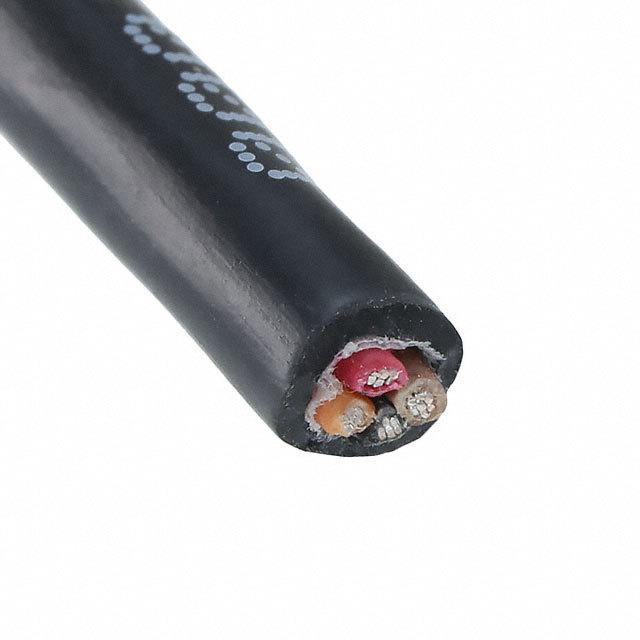

Alpha Wire 25004 BK005
Product Information
American Wire Gauge:
22 AWG
Conductor Resistance:
53.8 Ω/km
Screened/Unscreened:
Unscreened
Number of Cores:
4
Outer Diameter:
4.8mm
Standards Met:
CE, CSA, UL
Core Strands:
7/0.25 mm
Maximum Operating Temperature:
+90°C
Drain Wire:
No
Voltage Rating:
300 V
Minimum Bend Radius:
10 x Diameter
Fire Behaviour:
Halogen Free
Length:
30m
Sheath Material:
PE
Screen Type:
Unscreened
Conductor Material:
Tinned Copper
Series:
Xtra-Guard 2
Sheath Colour:
Black
Cross Sectional Area:
0.35 mm²
Minimum Operating Temperature:
-30°C
Insulation Material:
PVC
Ratings:
ISO 10993, UL Style 20668
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Polyurethane (PU)
Conductor Strand:
7/30
Operating Temperature:
-30°C ~ 90°C
Usage:
-
Number of Conductors:
4
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
22 AWG
Shield Type:
-
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
7 Weeks
Shield Coverage:
-
Features:
Biological Compatibility, Rip Cord
Jacket (Insulation) Diameter:
0.189" (4.80mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 2
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
-
ECCN:
EAR99
Base Product Number:
25004
Jacket Color:
Black
Checking for live stock
FAQs
Yes. You can also search 25004 BK005 on website for other similar products.
We accept all major payment methods for all products including ET11334360. Please check your shopping cart at the time of order.
You can order Alpha Wire brand products with 25004 BK005 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Alpha Wire 25004 BK005. You can also check on our website or by contacting our customer support team for further order details on Alpha Wire 25004 BK005.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11334360 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alpha Wire" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11334360.
Yes. We ship 25004 BK005 Internationally to many countries around the world.
This is manufactured by Alpha Wire. The manufacturer part number is 25004 BK005. Features 22 awg - American Wire Gauge. The conductor has 53.8 ω/km resistance. Screen Options - unscreened. The product consists of 4 cores. Its outer diameter is 4.8mm. The product complies with all safety standards, such as ce, csa, ul. The core strands are 7/0.25 mm. It has a maximum operating temperature of +90°c. It has a drain wire included no . Moreover, the product has a nominal 300 v voltage rating. It bears 10 x diameter of minimum bend radius. The product has a halogen free fire behaviour. Its accurate length is 30m. The sheath is constructed from durable and adorable pe material. It has a/an unscreened type screen . The conductor is made from tinned copper material. The product xtra-guard 2, is a highly preferred choice for users. The sheath has an adorable black colour. The product has 0.35 mm² cross section area. Whereas, the minimum operating temperature of the product is -30°c. It has a robust pvc insulation material. It is rated with iso 10993, ul style 20668. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated polyurethane (pu) materials. It also features a 7/30 conductor strand. The product has -30°c ~ 90°c operating temperature range. It features 4 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 22 awg. Furthermore, the insulated jacket is a 0.0320" (0.813mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 7 weeks standard lead time. The splendid features of the product include biological compatibility, rip cord. The diameter of the jacket is 0.189" (4.80mm). The conductor is made from copper, tinned material. The product xtra-guard® 2, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is designated with the ear99 code number. Moreover, it corresponds to 25004, a base product number of the product. It comes in nice black colour.
