Hazardous Area Certification:
Directive 2011/65/EU
Jacket Colour:
Grey
Outside Diameter:
0.328 in
Conductor Material:
Tin Copper Wire
Series:
Xtra-Guard 1 Performance Cable
Minimum Operating Temperature:
-30°C
Fire Behaviour:
EN 60332-2, EN 60332-1
Core Strands:
4
Armoured:
No
Screened/Unscreened:
Screened
American Wire Gauge:
16
Standards/Approvals:
UL, REACH Regulation (EC 1907/2006), IEC, CSA International, CE, California Proposition 65
Voltage:
300 Vrms
Jacket Material:
Polyvinyl Chloride
Number of Cores:
4
Cable CSA:
1.76 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
100ft
Ratings:
ISO 10993, UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
19/0.0117"
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
4
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
16 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
5 Weeks
Shield Coverage:
100%, 70%

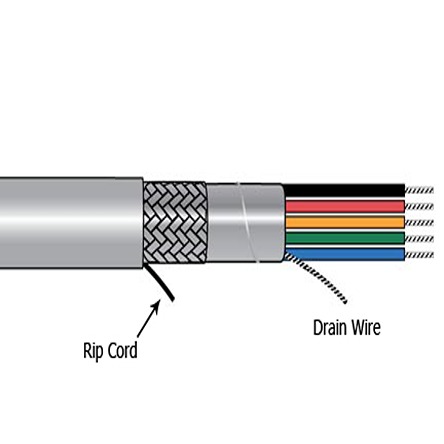

Features:
Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.316" (8.03mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Suprashield®; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5174C
Jacket Color:
Slate
