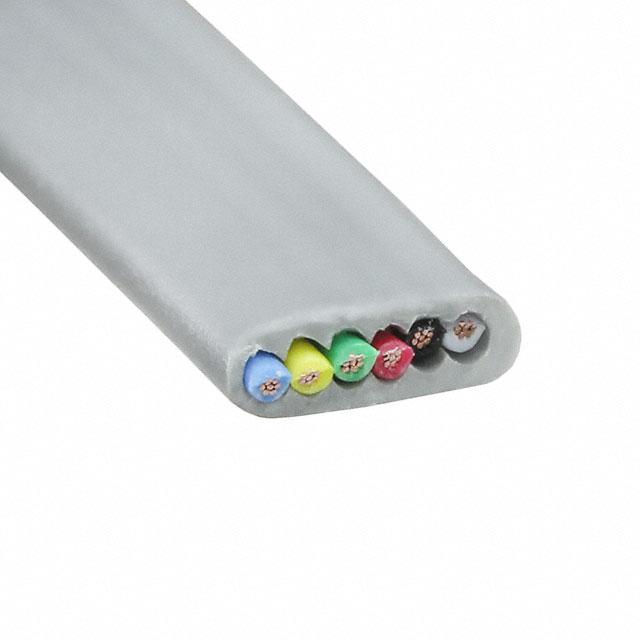

Alpha Wire 1606 SL021
Product Information
American Wire Gauge:
26 AWG
Sheath Material:
PVC
Conductor Resistance:
38 Ω
Voltage Rating:
150 V
Conductor Material:
Bare Copper
Maximum Operating Temperature:
+60°C
Minimum Bend Radius:
10 x Cable Diameter
Core Strands:
7/34 AWG
Sheath Colour:
Silver
Length:
305m
Screened/Unscreened:
Unscreened
Insulation Material:
PP
Minimum Operating Temperature:
-20°C
Number of Cores:
6
Outer Diameter:
2.29mm
Cross Sectional Area:
0.14 mm²
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/34
Operating Temperature:
-20°C ~ 60°C
Usage:
Communication, Control
Number of Conductors:
6
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
26 AWG
Shield Type:
-
Jacket (Insulation) Thickness:
0.0240" (0.610mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1000.0' (304.8m)
Conductor Insulation:
Polypropylene (PP)
standardLeadTime:
5 Weeks
Shield Coverage:
-
Features:
-
Jacket (Insulation) Diameter:
0.270" (6.86mm)
Conductor Material:
Copper, Bare
Series:
-
Cable Type:
Multi-Conductor
Voltage:
150 V
Shield Material:
-
ECCN:
EAR99
Base Product Number:
1606
Jacket Color:
Silver
Checking for live stock
FAQs
Yes. You can also search 1606 SL021 on website for other similar products.
We accept all major payment methods for all products including ET10965253. Please check your shopping cart at the time of order.
You can order Alpha Wire brand products with 1606 SL021 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Alpha Wire 1606 SL021. You can also check on our website or by contacting our customer support team for further order details on Alpha Wire 1606 SL021.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10965253 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alpha Wire" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10965253.
Yes. We ship 1606 SL021 Internationally to many countries around the world.
This is manufactured by Alpha Wire. The manufacturer part number is 1606 SL021. Features 26 awg - American Wire Gauge. The sheath is constructed from durable and adorable pvc material. The conductor has 38 ω resistance. Moreover, the product has a nominal 150 v voltage rating. The conductor is made from bare copper material. It has a maximum operating temperature of +60°c. It bears 10 x cable diameter of minimum bend radius. The core strands are 7/34 awg. The sheath has an adorable silver colour. Its accurate length is 305m. Screen Options - unscreened. It has a robust pp insulation material. Whereas, the minimum operating temperature of the product is -20°c. The product consists of 6 cores. Its outer diameter is 2.29mm. The product has 0.14 mm² cross section area. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 7/34 conductor strand. The product has -20°c ~ 60°c operating temperature range. The product's typical Applications include uses in communication, control. It features 6 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 26 awg. Furthermore, the insulated jacket is a 0.0240" (0.610mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 1000.0' (304.8m). The conductor offers excellent insulation due to polypropylene (pp) materials. It has a long 5 weeks standard lead time. The diameter of the jacket is 0.270" (6.86mm). The conductor is made from copper, bare material. It is a typical multi-conductor cable. It carries a 150 v of voltage. The product is designated with the ear99 code number. Moreover, it corresponds to 1606, a base product number of the product. It comes in nice silver colour.
