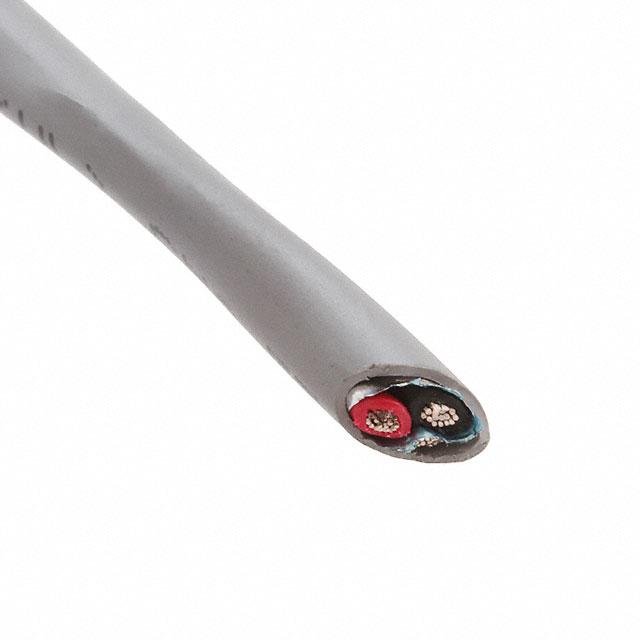

Alpha Wire 5471C SL001
Product Information
American Wire Gauge:
24 AWG
Standards Met:
CE
Cable Shape:
Twisted Pair
Series:
Alpha Essentials
Shield Type:
F/UTP
Fire Behaviour:
Flame Retardant
Core Strands:
7/0.2 mm
Sheath Colour:
Grey
Length:
304m
Screened/Unscreened:
Screened
Number of Pairs:
1
Outer Sheath Material:
PVC
Number of Cores:
2
Voltage Rating:
300 V
Characteristic Impedance:
54 Ω
Outer Diameter:
3.96mm
Shielded/Unshielded:
Shielded
Cross Sectional Area:
0.23 mm²
Ratings:
UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/32
Operating Temperature:
-20°C ~ 80°C
Usage:
-
Number of Conductors:
2 (1 Pair Twisted)
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
24 AWG
Shield Type:
Foil
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1000.0' (304.8m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
15 Weeks
Shield Coverage:
100%
Features:
Drain Wire
Jacket (Insulation) Diameter:
0.156" (3.96mm)
Conductor Material:
Copper, Tinned
Series:
-
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Aluminum
ECCN:
EAR99
Base Product Number:
5471C
Jacket Color:
Slate
Checking for live stock
FAQs
Yes. You can also search 5471C SL001 on website for other similar products.
We accept all major payment methods for all products including ET10699609. Please check your shopping cart at the time of order.
You can order Alpha Wire brand products with 5471C SL001 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Alpha Wire 5471C SL001. You can also check on our website or by contacting our customer support team for further order details on Alpha Wire 5471C SL001.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10699609 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alpha Wire" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10699609.
Yes. We ship 5471C SL001 Internationally to many countries around the world.
This is manufactured by Alpha Wire. The manufacturer part number is 5471C SL001. Features 24 awg - American Wire Gauge. The product complies with all safety standards, such as ce. Moreover, this cable has a twisted pair shape. The product alpha essentials, is a highly preferred choice for users. The item is shielded with a f/utp. The product has a flame retardant fire behaviour. The core strands are 7/0.2 mm. The sheath has an adorable grey colour. Its accurate length is 304m. Screen Options - screened. It includes 1 pair(s) . Whereas the outer sheath is manufactured from pvc material. The product consists of 2 cores. Moreover, the product has a nominal 300 v voltage rating. The typical characteristic impedance includes 54 ω. Its outer diameter is 3.96mm. Moreover, the product is shielded . The product has 0.23 mm² cross section area. It is rated with ul style 2464. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 7/32 conductor strand. The product has -20°c ~ 80°c operating temperature range. It features 2 (1 pair twisted) conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 24 awg. The item is shielded with a foil. Furthermore, the insulated jacket is a 0.0320" (0.813mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 1000.0' (304.8m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 15 weeks standard lead time. It covers shielding capability up to 100%. The splendid features of the product include drain wire. The diameter of the jacket is 0.156" (3.96mm). The conductor is made from copper, tinned material. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust aluminum shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to 5471c, a base product number of the product. It comes in nice slate colour.
