Manufacturer Standard Lead Time:
2 Weeks
Ratings:
ISO 10993, UL Style 2464
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
10
Conductor Strand:
7/28
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Standard Package:
1
Manufacturer:
Alpha Wire
Jacket (Insulation) Thickness:
0.032" (0.81mm)
Wire Gauge:
20 AWG
Shield Type:
Foil, Braid
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
500.0' (152.4m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
Shield Coverage:
100%, 70%
Features:

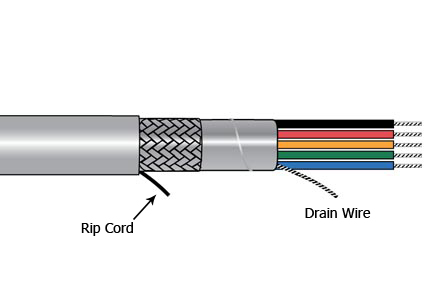

Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.376" (9.55mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Voltage:
300V
Shield Material:
Suprashield®; Copper, Tinned
Jacket Color:
Slate
Hazardous Area Certification:
No
Jacket Colour:
Grey
Minimum Operating Temperature:
-30°C
Conductor Material:
Tin Copper Wire
Series:
5160
Fire Behaviour:
EN 60332-1, EN 60332-2
Screened/Unscreened:
Screened
American Wire Gauge:
20AWG
Standards/Approvals:
UL CM 105C VW-1, UL AWM/STYLE 2517 105C / 300 VRMS, UL AWM/STYLE 2464 80C / 300 VRMS, UL AWM/STYLE 1569 105C / 300 VRMS, IEC EN 60332-2 Flame Behavior, IEC EN 60332-1 Flame Behavior, CSA International C(UL) TYPE CMG 105C FT4
Jacket Material:
Polyvinyl Chloride
Number of Cores:
10
Cable CSA:
0.5 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
500ft
