Ratings:
UL Style 2501
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
41/30
Operating Temperature:
-30°C ~ 105°C
Usage:
-
title:
5544 SL002
Number of Conductors:
4
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Wire Gauge:
14 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0630" (1.600mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
500.0' (152.4m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
40 Weeks
Shield Coverage:
100%, 70%

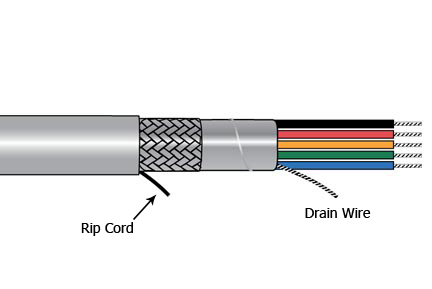

Features:
Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.492" (12.50mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Packaging:
Spool
Voltage:
600 V
Shield Material:
Aluminum; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5544
Jacket Color:
Slate
Hazardous Area Certification:
No
Jacket Colour:
Grey
Outside Diameter:
0.504 in
Conductor Material:
Tin Copper Wire
Series:
5544
Minimum Operating Temperature:
30°C
Fire Behaviour:
EN 60332-1, EN 60332-2
Core Strands:
14
Screened/Unscreened:
Screened
Conductor Type:
Stranded
American Wire Gauge:
14AWG
Voltage:
600 Vrms
Jacket Material:
Polyvinyl Chloride
Number of Cores:
4
Cable CSA:
2.5 mm²
Product Type:
Cable
Maximum Operating Temperature:
105°C
Cable Length:
500ft
Standards/Approvals:
CE, CSA, EN 60332-2, IEC EN 60332-1, REACH, RoHS, UL
