Ratings:
ISO 10993, UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/34
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
7
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
26 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1000.0' (304.8m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
8 Weeks
Shield Coverage:
100%, 70%

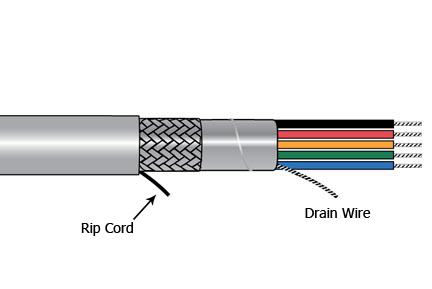

Features:
Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.214" (5.44mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Aluminum; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5686
Jacket Color:
Slate
Hazardous Area Certification:
No
Jacket Colour:
Grey
Minimum Operating Temperature:
-35°C
Conductor Material:
Tin Copper Wire
Series:
5686
Fire Behaviour:
EN 60332-1, EN 60332-2
Screened/Unscreened:
Screened
American Wire Gauge:
26AWG
Standards/Approvals:
UL AWM/STYLE 2464 80C / 300 VRMS CM 105C VW-1 AWM/STYLE 2517 105C / 300 VRMS SUN RES, UL AWM/STYLE 10002 105C / 300 VRMS, IEC EN 60332-1 Flame Behavior EN 60332-2 Flame Behavior, EU Low Voltage 2014/35/EU, EU 2015/863/EU (RoHS3), EU 2011/65/EU(RoHS2), CSA International CMG 105C FT4
Jacket Material:
Polyvinyl Chloride
Number of Cores:
7
Cable CSA:
0.14 mm²
Product Type:
Cable
Maximum Operating Temperature:
105°C
Cable Length:
1000ft
