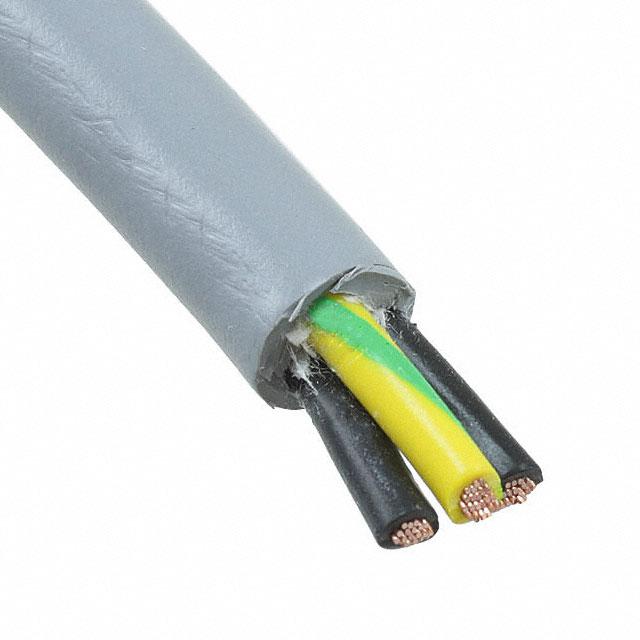

Alpha Wire 80060 SL005

80060-SL005 Alpha Wire 80060 SL005
80060 SL005
80060 SL005
Alpha Wire

Product Information

American Wire Gauge:
12 AWG
Conductor Resistance:
1.76 Ω/1000ft
Screened/Unscreened:
Unscreened
Number of Cores:
3
Outer Diameter:
9.07mm
Standards Met:
CE, CSA, UL
Core Strands:
168/0.16 mm
Maximum Operating Temperature:
+90°C
Drain Wire:
No
Voltage Rating:
600 V
Minimum Bend Radius:
4 x Diameter
Fire Behaviour:
Halogen Free
Length:
30m
Sheath Material:
Polyurethane PUR
Screen Type:
Unscreened
Conductor Material:
Tinned Copper
Series:
EcoFlex PUR
Sheath Colour:
Grey
Cross Sectional Area:
3.33 mm²
Minimum Operating Temperature:
-50°C
Insulation Material:
MPPE
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Polyurethane (PU)
Conductor Strand:
168/34
Operating Temperature:
-50°C ~ 90°C
Usage:
-
Number of Conductors:
3
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
12 AWG
Shield Type:
-
Jacket (Insulation) Thickness:
0.0319" (0.810mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Polyphenylene Ether (PPE)
standardLeadTime:
10 Weeks
Shield Coverage:
-
Features:
-
Jacket (Insulation) Diameter:
0.357" (9.06mm)
Conductor Material:
Copper, Tinned
Series:
EcoFlex® PUR
Cable Type:
Multi-Conductor
Voltage:
600 V
Shield Material:
-
ECCN:
EAR99
Base Product Number:
80060
Jacket Color:
Slate
RoHs Compliant
Checking for live stock

This is manufactured by Alpha Wire. The manufacturer part number is 80060 SL005. Features 12 awg - American Wire Gauge. The conductor has 1.76 ω/1000ft resistance. Screen Options - unscreened. The product consists of 3 cores. Its outer diameter is 9.07mm. The product complies with all safety standards, such as ce, csa, ul. The core strands are 168/0.16 mm. It has a maximum operating temperature of +90°c. It has a drain wire included no . Moreover, the product has a nominal 600 v voltage rating. It bears 4 x diameter of minimum bend radius. The product has a halogen free fire behaviour. Its accurate length is 30m. The sheath is constructed from durable and adorable polyurethane pur material. It has a/an unscreened type screen . The conductor is made from tinned copper material. The product ecoflex pur, is a highly preferred choice for users. The sheath has an adorable grey colour. The product has 3.33 mm² cross section area. Whereas, the minimum operating temperature of the product is -50°c. It has a robust mppe insulation material. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated polyurethane (pu) materials. It also features a 168/34 conductor strand. The product has -50°c ~ 90°c operating temperature range. It features 3 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 12 awg. Furthermore, the insulated jacket is a 0.0319" (0.810mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to polyphenylene ether (ppe) materials. It has a long 10 weeks standard lead time. The diameter of the jacket is 0.357" (9.06mm). The conductor is made from copper, tinned material. The product ecoflex® pur, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 600 v of voltage. The product is designated with the ear99 code number. Moreover, it corresponds to 80060, a base product number of the product. It comes in nice slate colour.
