Manufacturer Standard Lead Time:
2 Weeks
Ratings:
ISO 10993, UL Style 2464
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
4
Conductor Strand:
7/32
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Standard Package:
1
Manufacturer:
Alpha Wire
Jacket (Insulation) Thickness:
0.032" (0.81mm)
Wire Gauge:
24 AWG
Shield Type:
Foil, Braid
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1000.0' (304.8m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
Shield Coverage:
100%, 70%

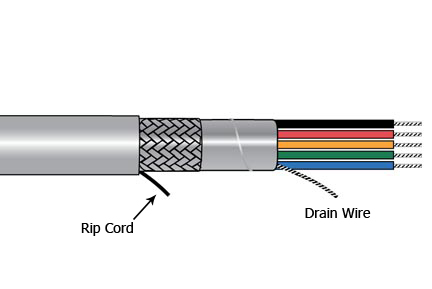

Features:
Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.203" (5.16mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Voltage:
300V
Shield Material:
Suprashield®; Copper, Tinned
Jacket Color:
Slate
Hazardous Area Certification:
No
Jacket Colour:
Grey
Outside Diameter:
0.56 mm
Conductor Material:
Tin Copper Wire
Series:
5114
Minimum Operating Temperature:
-35°C
Fire Behaviour:
EN 60332-1, EN 60332-2
Screened/Unscreened:
Screened
American Wire Gauge:
24AWG
Standards/Approvals:
CE, CSA, IEC, UL
Voltage:
300 Vrms
Jacket Material:
Polyvinyl Chloride
Number of Cores:
4
Cable CSA:
0.25 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
1000ft
