Product Type:

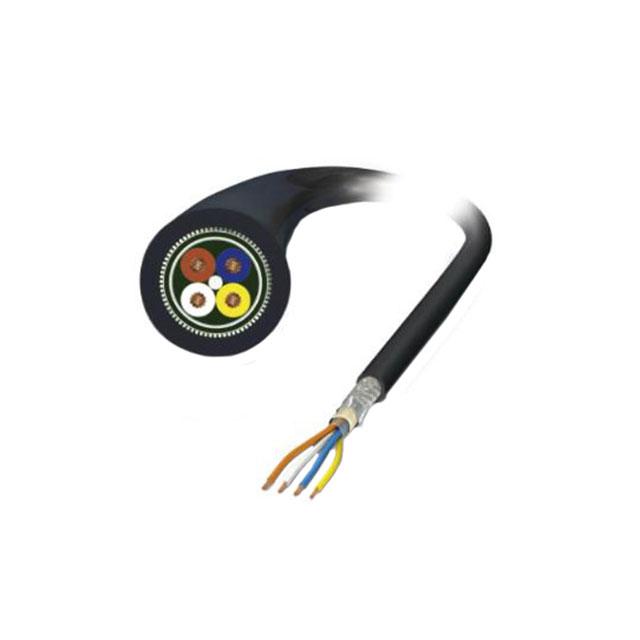

Ethernet Cable
Outside Diameter:
7.25 mm
Conductor Material:
Silver Plated Copper
Series:
VS
Shield Type:
Shielded
Fire Behaviour:
72 h at 100°C BS 6853 (Category 1a), DIN 5510 (Fire protection level 1), EN 45545 (Risk level HL1-HL3), 2.1 NF C32-070, GM/RT 2130 (Category Ia), 2.2 UL 1685, 12 (FT4) Flame resistance in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01) Resistance to oil IRM 902, NF F16-101 (Category A1), B) NF F16-101 (Class C/F0) Fire protection in rail vehicles
Core Strands:
7
Screened/Unscreened:
Screened
Minimum Operating Temperature:
-50°C
Jacket Colour:
Black
Standards/Approvals:
EAC Approval ID:RU D-DE.HB35.B.00385.B
Voltage:
300 V
Jacket Material:
PEX
Number of Cores:
4
LAN Category:
Cat5
Maximum Operating Temperature:
90°C
Cable Length:
100m
Cross Sectional Area:
4 x 0.34 mm²
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
7/30
Operating Temperature:
-50°C ~ 90°C
Usage:
-
Number of Conductors:
4 (1 Twisted Quad)
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Polyethylene (XLPE), Irradiated
Wire Gauge:
22 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0315" (0.800mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
328.1' (100.0m)
standardLeadTime:
5 Weeks
Shield Coverage:
100%
Features:
-
Jacket (Insulation) Diameter:
0.285" (7.24mm)
Conductor Material:
Copper, Silver Coated
Series:
-
Cable Type:
Multi-Pair, Cat5
Packaging:
Bulk
Voltage:
300 V
Shield Material:
Aluminum; Copper, Tinned
ECCN:
EAR99
Jacket Color:
Black
