Ratings:
ISO 10993
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
7/30
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
37
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Wire Gauge:
22 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0630" (1.600mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
500.0' (152.4m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
8 Weeks
Shield Coverage:
100%, 70%
Features:

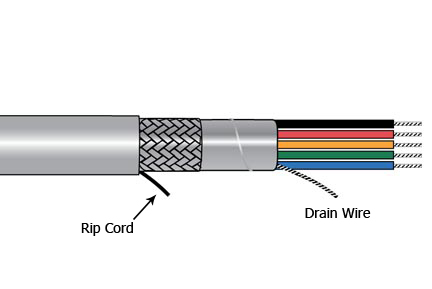

Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.508" (12.90mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Packaging:
Spool
Voltage:
300 V
Shield Material:
Suprashield®; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5316C
Jacket Color:
Slate
Hazardous Area Certification:
Directive 2011/65/EU
Jacket Colour:
Grey
Minimum Operating Temperature:
-35°C
Conductor Material:
Tin Copper Wire
Series:
5316
Fire Behaviour:
EN, EN 60332-1
Core Strands:
37
Screened/Unscreened:
Screened
American Wire Gauge:
22AWG
Standards/Approvals:
CE, CSA International, IEC, UL
Jacket Material:
Polyvinyl Chloride
Number of Cores:
37
Cable CSA:
0.34 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
500ft
