Ratings:
ISO 10993, UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
7/28
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
2
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Wire Gauge:
20 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
500.0' (152.4m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
14 Weeks
Shield Coverage:
100%, 70%
Features:

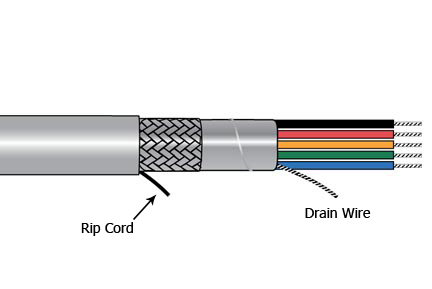

Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.236" (5.99mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Packaging:
Spool
Voltage:
300 V
Shield Material:
Suprashield®; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5152C
Jacket Color:
Slate
Hazardous Area Certification:
No
Jacket Colour:
Grey
Outside Diameter:
0.246 in
Conductor Material:
Tin Copper Wire
Series:
5152
Minimum Operating Temperature:
30°C
Fire Behaviour:
EN 60332-2, EN 60332-1
Core Strands:
20
Screened/Unscreened:
Screened
Conductor Type:
Stranded
American Wire Gauge:
20AWG
Voltage:
300 Vrms
Jacket Material:
Polyvinyl Chloride
Number of Cores:
2
Cable CSA:
0.5 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
500ft
Standards/Approvals:
CE, CSA, IEC EN 60332-1, IEC EN 60332-2, REACH, RoHS, UL
