Ratings:
ISO 10993
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
7/32
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
37
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Wire Gauge:
24 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0630" (1.600mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1000.0' (304.8m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
8 Weeks
Shield Coverage:
100%, 70%

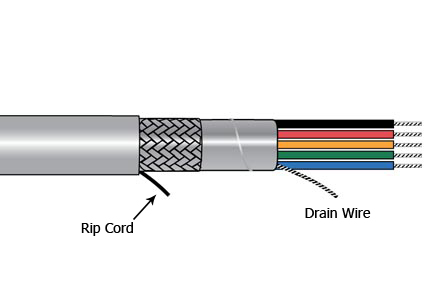

Features:
Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.466" (11.84mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Packaging:
Spool
Voltage:
300 V
Shield Material:
Suprashield®; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5306C
Jacket Color:
Slate
Hazardous Area Certification:
No
Jacket Colour:
Grey
Outside Diameter:
0.491 in
Conductor Material:
Tin Copper Wire
Series:
5306
Minimum Operating Temperature:
-35°C
Fire Behaviour:
EN 60332-1, EN 60332-2
Core Strands:
24
Screened/Unscreened:
Screened
Conductor Type:
Stranded
American Wire Gauge:
24AWG
Voltage:
300 Vrms
Jacket Material:
Polyvinyl Chloride
Standards/Approvals:
UL, CE, CSA, EN 60332-2, IEC EN 60332-1, REACH, RoHS
Cable CSA:
0.25 mm²
Product Type:
Multicore Cable
Maximum Operating Temperature:
105°C
Cable Length:
1000ft
