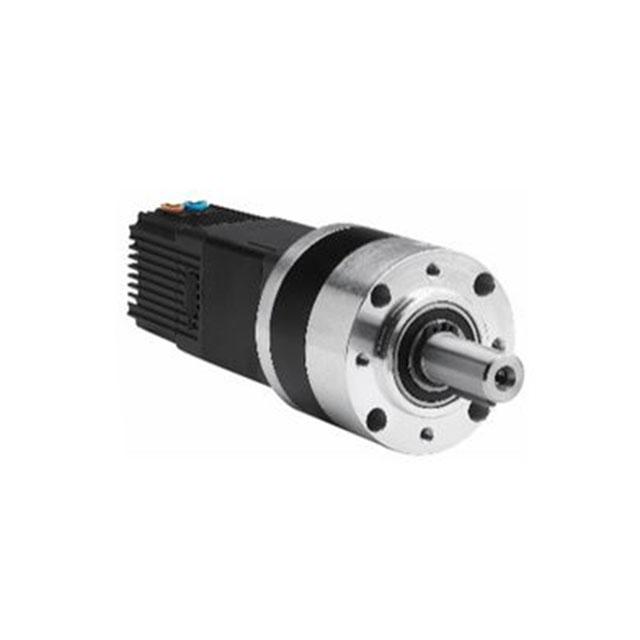

Crouzet 80289723
Product Information
Shaft Diameter:
19mm
Current Rating:
12 A
Dimensions:
81 (Dia.) x 284.2 mm
DC Motor Type:
Brushless
Series:
80 289 7 SMI21
Gear Ratio:
19.2:1
Gearhead Type:
Planetary
Shaft Angle:
Straight
Maximum Output Torque:
15.4 Nm
Width:
81 (Dia.)mm
Depth:
284.2mm
Supply Voltage:
100 V dc
Power Rating:
304 W
Output Speed:
208 rpm
Standards Met:
CE, EC, EN55022
Torque - Rated (oz-in / mNm):
-
HTSUS:
8501.20.4000
RoHS Status:
RoHS Compliant
Termination Style:
Cable with Connector
Power - Rated:
100W
Operating Temperature:
-30°C ~ 70°C
Approval Agency:
CE
Motor Type:
Brushless (BLDC)
Type:
DC Motor
Function:
Servomotor
Voltage - Rated:
12 ~ 32VDC
REACH Status:
REACH Unaffected
Mounting Hole Spacing:
2.560" (65.00mm)
Length - Shaft and Bearing:
1.929" (49.00mm)
RPM:
-
Diameter - Shaft:
0.748" (19.00mm)
Package:
Bulk
Encoder Type:
-
Size / Dimension:
-
Gear Reduction Ratio:
19.20
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Integrated Controller
Weight:
-
Series:
DCmind, 80289, SMi21
Torque - Max Momentary (oz-in / mNm):
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 80289723 on website for other similar products.
We accept all major payment methods for all products including ET12205422. Please check your shopping cart at the time of order.
You can order Crouzet brand products with 80289723 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Motors - AC, DC category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Crouzet 80289723. You can also check on our website or by contacting our customer support team for further order details on Crouzet 80289723.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12205422 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Crouzet" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12205422.
Yes. We ship 80289723 Internationally to many countries around the world.
This is manufactured by Crouzet. The manufacturer part number is 80289723. The diameter of the shaft is 19mm. The product has a current rating of 12 a. The given dimensions of the product include 81 (dia.) x 284.2 mm. In addition, in includes a brushless type DC motor . The product 80 289 7 smi21, is a highly preferred choice for users. Its gear ratio is 19.2:1 . It has an adorable planetary type gearhead . It has a straight shaft angle . Its maximum output torque is about 15.4 nm . Furthermore, the product is 81 (dia.)mm wide. The product comes in 284.2mm depth. Features 100 v dc supply voltage. Feature 304 w of power rating. Its output speed is 208 rpm . The product complies with all safety standards, such as ce, ec, en55022. It is assigned with possible HTSUS value of 8501.20.4000. The product is rohs compliant. Moreover, it has cable with connector terminal style. It features a power rating of 100w. The product has -30°c ~ 70°c operating temperature range. It is approved by ce. This high-efficiency motor is a brushless (bldc). It comes in dc motor configuration. It performs basic function of servomotor. It also exhibits voltage rating of 12 ~ 32vdc. In addition, it is reach unaffected. It has a 2.560" (65.00mm) mounting hole space. The typical length of shaft and bearing is 1.929" (49.00mm). Shaft with a 0.748" (19.00mm) diameter. It is shipped in bulk package . Features 19.20 gear reduction ratio. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include integrated controller. The product dcmind, 80289, smi21, is a highly preferred choice for users. The product is designated with the ear99 code number.
