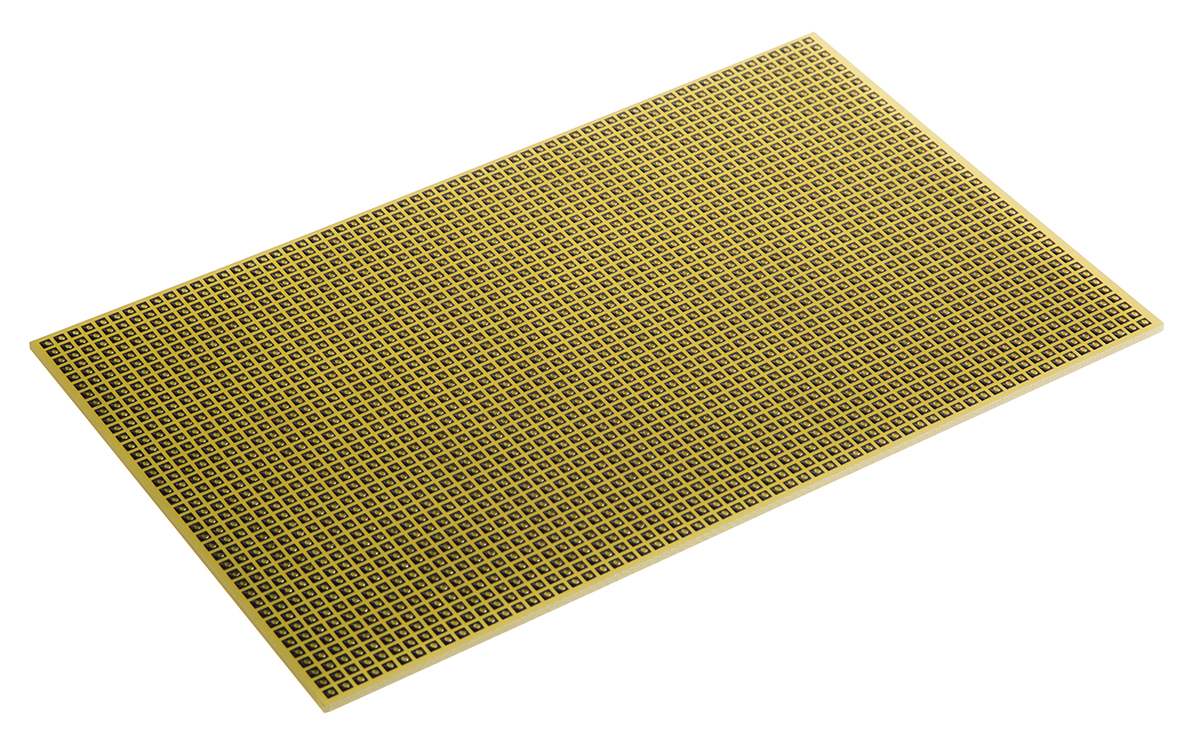

AGP10, Single Sided Matrix Board FR4 with 1mm Holes 2.54 x 2.54mm Pitch, 160 x 100 x 1.6mm

  • Enrgtech Part No: ET14034237
  • |
  • Manufacturer Part No:

    AGP10

  • |
  • Manufacturer: CIF
AGP10 , Single Sided Matrix Board FR4 with 1mm Holes 2.54 x 2.54mm Pitch, 160 x 100 x 1.6mm
AGP10 , Single Sided Matrix Board FR4 with 1mm Holes 2.54 x 2.54mm Pitch, 160 x 100 x 1.6mm
CIF

Product Information

FR Material Grade:
FR4
Copper Thickness:
35µm
Dimensions:
160 x 100 x 1.6mm
Hole Pitch:
2.54 x 2.54mm
Thickness:
1.6mm
Width:
100mm
Length:
160mm
Hole Diameter:
1mm
Base Material:
Epoxy Glass Fabric Laminate
Number of Sides:
1
RoHs Compliant
Checking for live stock

The CIF AGP10 is a high-grade single-sided matrix board designed for efficient circuit prototyping and experimental development. Measuring 160mm x 100mm, this board is constructed from robust FR4 epoxy glass fabric laminate, ensuring excellent mechanical stability and electrical insulation. It features a standardised 2.54mm hole pitch with tinned copper pads, facilitating easy soldering and component placement. Whether for educational labs or professional engineering projects, the AGP10 provides a reliable, cost-effective platform for validating circuit designs before moving to permanent PCB production.

Why Buy the Product?

The CIF AGP10 matrix board streamlines prototyping by providing a durable, pre-drilled layout that delivers professional-grade results for any project.

  • High-quality FR4 epoxy glass material prevents board warping and heat damage during soldering.
  • Tinned copper square pads offer superior solder wetting and reliable electrical connections.
  • Standard 2.54mm pitch supports a vast range of through-hole components.
  • Single-sided design simplifies circuit layout for hobbyists and educational use.
  • Precision 1mm hole diameters accommodate various wire gauges and component leads.

Special Features & Typical Environments

Functional Highlights

  • Square Pad Design: 2mm x 2mm pads provide more surface area for secure soldering compared to circular pads.
  • High Dielectric Strength: Epoxy glass laminate provides superior insulation for low-voltage electronics.
  • Compact Dimensions: Perfectly sized at 160x100mm for standard enclosure mounting and portable projects.

Typical Applications

  • Academic Labs: Used by students to learn circuit assembly and soldering techniques.
  • Electronic Prototyping: Rapid testing of microcontroller circuits and sensor interfaces.
  • DIY Hobbyist Projects: Building custom home automation modules or audio equipment.

pdf icon
Tinned copper clad pads(Technical Reference)
