Toshiba Semiconductor and Storage TLP2108(TP,F)
Product Information
Detailed Description:
Logic Output Optoisolator 5Mbps Push-Pull, Totem Pole 2500Vrms 2 Channel 10kV/µs CMTI 8-SO
Propagation Delay tpLH / tpHL (Max):
250ns, 250ns
Operating Temperature:
-40°C ~ 100°C
Input Type:
DC
Package / Case:

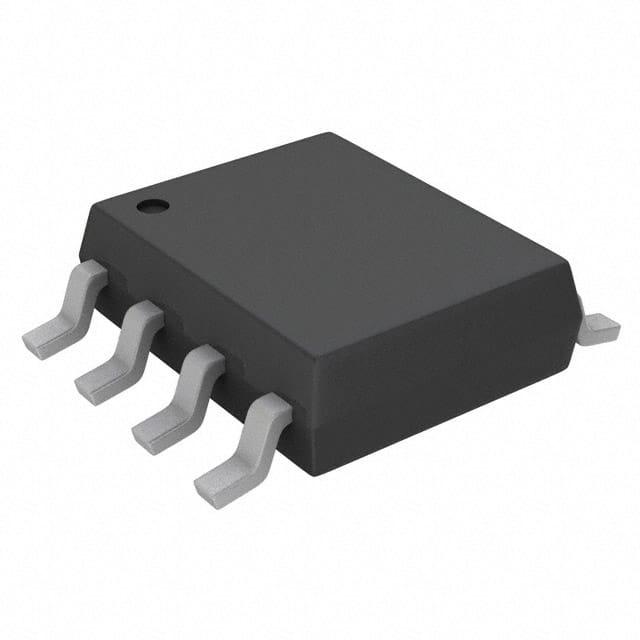

8-SOIC (0.154", 3.90mm Width)
Base Part Number:
TLP2108
Rise / Fall Time (Typ):
30ns, 30ns
Output Type:
Push-Pull, Totem Pole
Current - DC Forward (If) (Max):
20mA
Number of Channels:
2
Data Rate:
5Mbps
Manufacturer:
Toshiba Semiconductor and Storage
Current - Output / Channel:
25mA
Inputs - Side 1/Side 2:
2/0
Common Mode Transient Immunity (Min):
10kV/µs
Voltage - Forward (Vf) (Typ):
1.65V
Voltage - Isolation:
2500Vrms
Mounting Type:
Surface Mount
Supplier Device Package:
8-SO
Packaging:
Cut Tape (CT)
Voltage - Supply:
4.5V ~ 20V
Customer Reference:
Checking for live stock
FAQs
Yes. You can also search TLP2108(TP,F) on website for other similar products.
We accept all major payment methods for all products including ET11966818. Please check your shopping cart at the time of order.
You can order Toshiba Semiconductor and Storage brand products with TLP2108(TP,F) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Logic Output Optoisolators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba Semiconductor and Storage TLP2108(TP,F). You can also check on our website or by contacting our customer support team for further order details on Toshiba Semiconductor and Storage TLP2108(TP,F).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11966818 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba Semiconductor and Storage" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11966818.
Yes. We ship TLP2108(TP,F) Internationally to many countries around the world.
This is manufactured by Toshiba Semiconductor and Storage. The manufacturer part number is TLP2108(TP,F). It features logic output optoisolator 5mbps push-pull, totem pole 2500vrms 2 channel 10kv/µs cmti 8-so. It has a maximum propagation delay of 250ns, 250ns. The product has -40°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 8-soic (0.154", 3.90mm width). Base Part Number: tlp2108. The typical rise and fall time of the product is 30ns, 30ns. Furthermore, it has apush-pull, totem pole output. The maximum DC forward current of the product is 20ma. It is supplied with 2 channels. It has a maximised data speed rate of 5mbps. The toshiba semiconductor and storage's product offers user-desired applications. It carries 25ma output or channel current. The typical 2/0 inputs of both sides (side 1/side 2). Allows a 10kv/µs of minimum common mode transient immunity. The typical forward voltage (Vf) of the product is 1.65v. 2500vrms of isolation voltage. The product is available in surface mount configuration. 8-so is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. It has optimum voltage supply of 4.5v ~ 20v.
