Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
2.1 x 2.4 x 0.8mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
7.5 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
LVCMOS
Height:
0.8mm
Width:
2.40mm
Length:
2.1mm
Package Type:
US
Number of Elements per Chip:
3
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Maximum Operating Supply Voltage:
5.5 V
Manufacturer Standard Lead Time:
51 Weeks
Detailed Description:

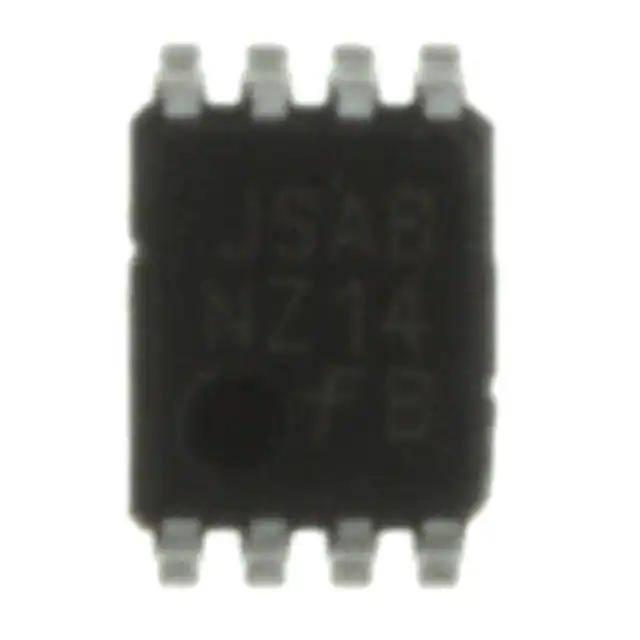

Inverter IC 3 Channel Schmitt Trigger US8
Number of Inputs:
3
Operating Temperature:
-40°C ~ 85°C
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
Base Part Number:
NC7NZ14
Current - Quiescent (Max):
1µA
Max Propagation Delay @ V, Max CL:
5.9ns @ 5V, 50pF
Manufacturer:
ON Semiconductor
Number of Circuits:
3
Logic Level - High:
1.5V ~ 3.6V
Features:
Schmitt Trigger
Mounting Type:
Surface Mount
Current - Output High, Low:
32mA, 32mA
Logic Type:
Inverter
Supplier Device Package:
US8
Packaging:
Cut Tape (CT)
Voltage - Supply:
1.65V ~ 5.5V
Customer Reference:
Series:
7NZ
Logic Level - Low:
0.25V ~ 1.2V
