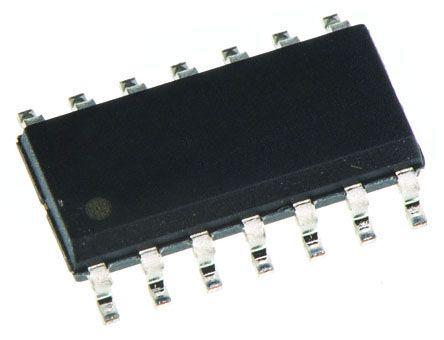

ON Semiconductor MC74HCT86ADR2G
Product Information
Dimensions:
8.75 x 4 x 1.75mm
Logic Family:
HCT
Width:
4mm
Input Type:
CMOS
Maximum Low Level Output Current:
4mA
Maximum High Level Output Current:
4mA
Maximum Propagation Delay Time @ Maximum CL:
31ns
Minimum Operating Supply Voltage:
2 V
Output Type:
LSTTL
Package Type:
SOIC
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
8.75mm
Pin Count:
14
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Surface Mount
Logic Function:
XOR
Height:
1.75mm
Minimum Operating Temperature:
-55 °C
Schmitt Trigger Input:
No
Number of Elements:
4
Propagation Delay Test Condition:
50pF
Manufacturer Standard Lead Time:
51 Weeks
Base Part Number:
74HCT86
Detailed Description:
XOR (Exclusive OR) IC 4 Channel 14-SOIC
Current - Output High, Low:
4mA, 4mA
Number of Inputs:
2
Mounting Type:
Surface Mount
Series:
74HCT
Logic Type:
XOR (Exclusive OR)
Supplier Device Package:
14-SOIC
Max Propagation Delay @ V, Max CL:
20ns @ 5V, 50pF
Current - Quiescent (Max):
1µA
Packaging:
Cut Tape (CT)
Operating Temperature:
-55°C ~ 125°C
Voltage - Supply:
2V ~ 6V
Customer Reference:
Package / Case:
14-SOIC (0.154", 3.90mm Width)
Logic Level - Low:
0.8V
Number of Circuits:
4
Logic Level - High:
2V
Manufacturer:
ON Semiconductor
