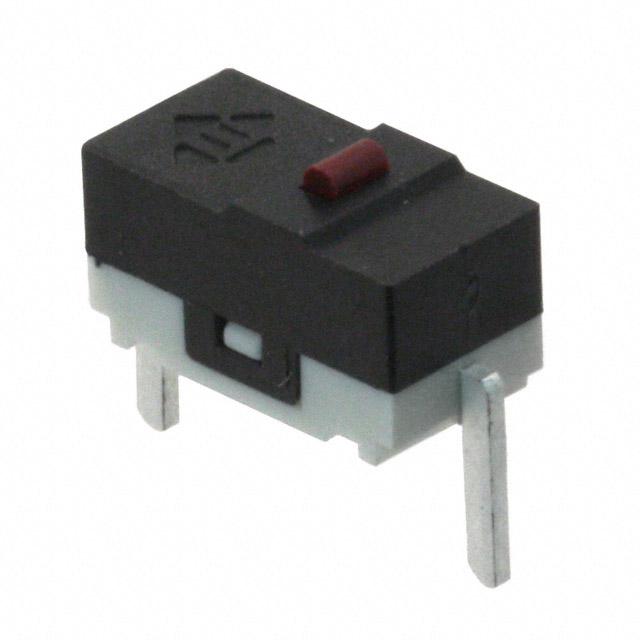

E-Switch TS10100F070P

TS10100F070P E-Switch
TS10100F070P
E-Switch

Product Information

Operating Force:
70gf
HTSUS:
8536.50.7000
RoHS Status:
ROHS3 Compliant
Electrical Life:
30,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
48 V
Operating Temperature:
-15°C ~ 55°C
Mechanical Life:
100,000 Cycles
Differential Travel:
-
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
Overtravel:
-
Pretravel:
0.014" (0.35mm)
Package:
Bulk
Switch Function:
Off-Mom
Operating Position:
0.209" (5.3mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
standardLeadTime:
17 Weeks
Current Rating (Amps):
100mA (AC/DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
TS1
Actuator Type:
Round (Pin Plunger)
Release Force:
-
Base Product Number:
TS10100
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TS10100F070P. It has a 70gf of operating force. It is assigned with possible HTSUS value of 8536.50.7000. The product is rohs3 compliant. The product offers long-lasting services of 30,000 cycles. Moreover, it has pc pin terminal style. 48 v of DC voltage rating. The product has -15°c ~ 55°c operating temperature range. The product also provide mechanical stability with 100,000 cycles. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. While the pretravel value is 0.014" (0.35mm). It is shipped in bulk package . It is designed as a off-mom switching function. It has the given operating position of 0.209" (5.3mm). Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. It has a long 17 weeks standard lead time. Additionally, the product's output is 100ma (ac/dc). The product is available in through hole configuration. The product ts1, is a highly preferred choice for users. The product carries round (pin plunger) actuator. Moreover, it corresponds to ts10100, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TS1 Series Switches Datasheet(Datasheets)
pdf icon
TS10100F070P Drawing(Product Drawings)
pdf icon
E-Switch RoHS 3 Cert(Environmental Information)
