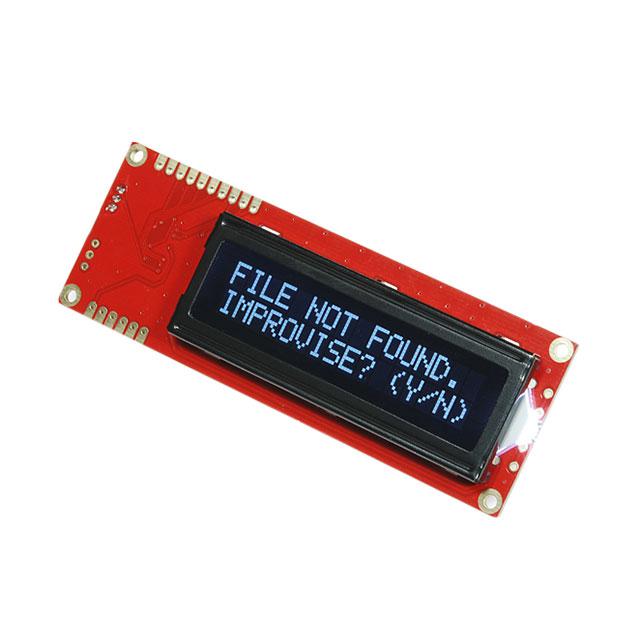

This is manufactured by SparkFun Electronics. The manufacturer part number is LCD-09395. Its character size is 5.23mm h x 3.00mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. The product has 0°c ~ 50°c operating temperature range. It has a typical 16 x 2 display format. A bespoke product is parallel/serial interface. It is shipped in bulk package . Provides a 71.45mm l x 27.03mm w viewing area. Its typical moisture sensitivity level is 1 (unlimited). The text is provided in white colour. It has a long 5 weeks standard lead time. The product has a classic black background colour. It features a remarkable stn - super-twisted nematic display. Consists of 32 characters. Outline Specifications include in (L x W x H) - 103.00mm x 36.00mm x 7.05mm. It has optimum voltage supply of 5v. Typically has a transflective display mode. Has a dot size of 0.56mm w x 0.61mm h. Backlight Options - led. The product is designated with the ear99 code number.
Serial LCD Backpack Schematic(Design Resources)
SerLCD v2.5(Datasheets)
LCD-09395(Datasheets)
Serial LCD Quickstart(Datasheets)
ADM1602U Drawing(Product Drawings)
Serial Enabled 5V LCD Screen Drawing(Product Drawings)
