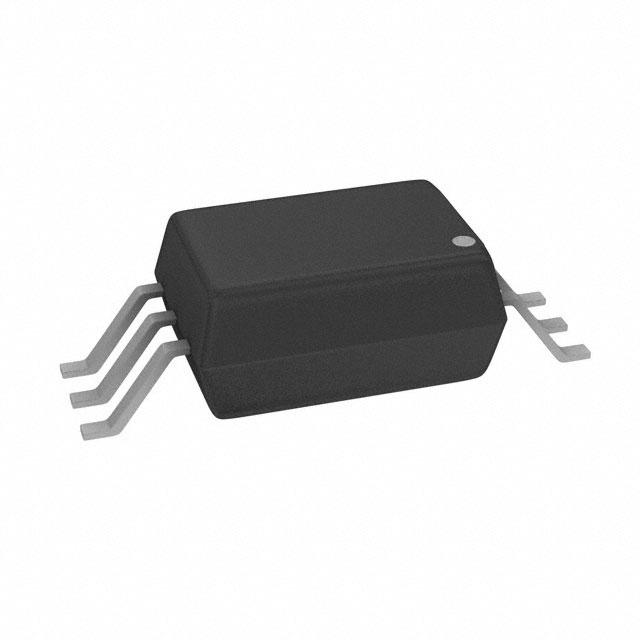

Fairchild Semiconductor FOD8314T

FOD8314T Fairchild Semiconductor
Fairchild Semiconductor

Product Information

Voltage - Output Supply:
16V ~ 30V
HTSUS:
8541.49.8000
Propagation Delay tpLH / tpHL (Max):
500ns, 500ns
Operating Temperature:
-40°C ~ 100°C
Approval Agency:
UL
Package / Case:
6-SOIC (0.268", 6.80mm Width)
Current - DC Forward (If) (Max):
25 mA
Rise / Fall Time (Typ):
60ns, 40ns
Number of Channels:
1
Pulse Width Distortion (Max):
300ns
Package:
Bulk
Current - Peak Output:
1.5A
Common Mode Transient Immunity (Min):
20kV/µs
Voltage - Forward (Vf) (Typ):
1.5V
Voltage - Isolation:
5000Vrms
Mounting Type:
Surface Mount
Current - Output High, Low:
1A, 1A
Supplier Device Package:
6-SOP
Series:
-
Technology:
Optical Coupling
ECCN:
EAR99
Checking for live stock

This is manufactured by Fairchild Semiconductor. The manufacturer part number is FOD8314T. Output supply voltage of 16v ~ 30v. It is assigned with possible HTSUS value of 8541.49.8000. It has a maximum propagation delay of 500ns, 500ns. The product has -40°c ~ 100°c operating temperature range. It is approved by ul. Moreover, the product comes in 6-soic (0.268", 6.80mm width). The maximum DC forward current of the product is 25 ma. The typical rise and fall time of the product is 60ns, 40ns. It is supplied with 1 channels. The maximum pulse width distortion is 300ns. It is shipped in bulk package . It carries 1.5a peak current output. Allows a 20kv/µs of minimum common mode transient immunity. The typical forward voltage (Vf) of the product is 1.5v. 5000vrms of isolation voltage. The product is available in surface mount configuration. The high and low output current of the product is 1a, 1a. 6-sop is the supplier device package value. This product use optical coupling technology. The product is designated with the ear99 code number.
