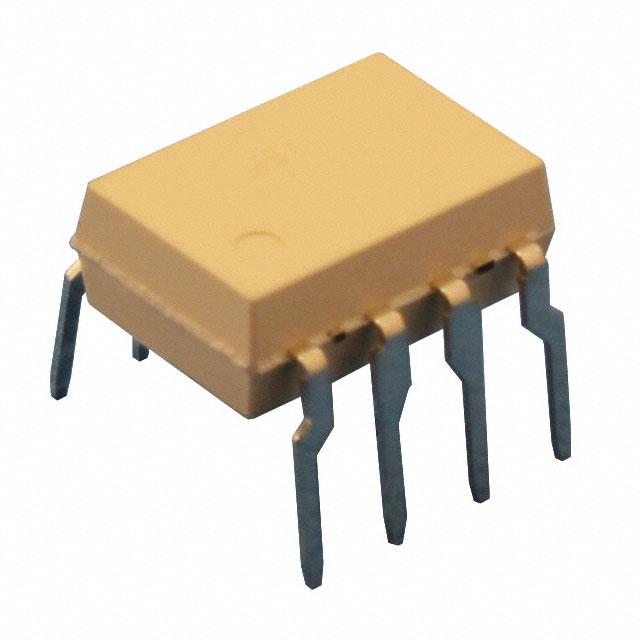

Renesas Electronics America Inc PS9505-AX
Product Information
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Propagation Delay tpLH / tpHL (Max):
250ns, 250ns
Operating Temperature:
-40°C ~ 110°C
Approval Agency:
CSA, SEMKO, UL
Package / Case:
8-DIP (0.300", 7.62mm)
Current - DC Forward (If) (Max):
25 mA
Rise / Fall Time (Typ):
50ns, 50ns
REACH Status:
REACH Unaffected
Number of Channels:
1
Current - Output High, Low:
2A, 2A
Package:
Strip
Pulse Width Distortion (Max):
100ns
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Common Mode Transient Immunity (Min):
25kV/µs
Voltage - Forward (Vf) (Typ):
1.56V
Voltage - Isolation:
5000Vrms
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
8-DIP
Current - Peak Output:
2.5A
Technology:
Optical Coupling
Base Product Number:
PS9505
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PS9505-AX on website for other similar products.
We accept all major payment methods for all products including ET20626620. Please check your shopping cart at the time of order.
You can order Renesas Electronics America Inc brand products with PS9505-AX directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Isolators - Gate Drivers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics America Inc PS9505-AX. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics America Inc PS9505-AX.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20626620 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Renesas Electronics America Inc" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20626620.
Yes. We ship PS9505-AX Internationally to many countries around the world.
This is manufactured by Renesas Electronics America Inc. The manufacturer part number is PS9505-AX. It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It has a maximum propagation delay of 250ns, 250ns. The product has -40°c ~ 110°c operating temperature range. It is approved by csa, semko, ul. Moreover, the product comes in 8-dip (0.300", 7.62mm). The maximum DC forward current of the product is 25 ma. The typical rise and fall time of the product is 50ns, 50ns. In addition, it is reach unaffected. It is supplied with 1 channels. The high and low output current of the product is 2a, 2a. It is shipped in strip package . The maximum pulse width distortion is 100ns. Its typical moisture sensitivity level is 1 (unlimited). Allows a 25kv/µs of minimum common mode transient immunity. The typical forward voltage (Vf) of the product is 1.56v. 5000vrms of isolation voltage. The product is available in through hole configuration. 8-dip is the supplier device package value. It carries 2.5a peak current output. This product use optical coupling technology. Moreover, it corresponds to ps9505, a base product number of the product. The product is designated with the ear99 code number.
