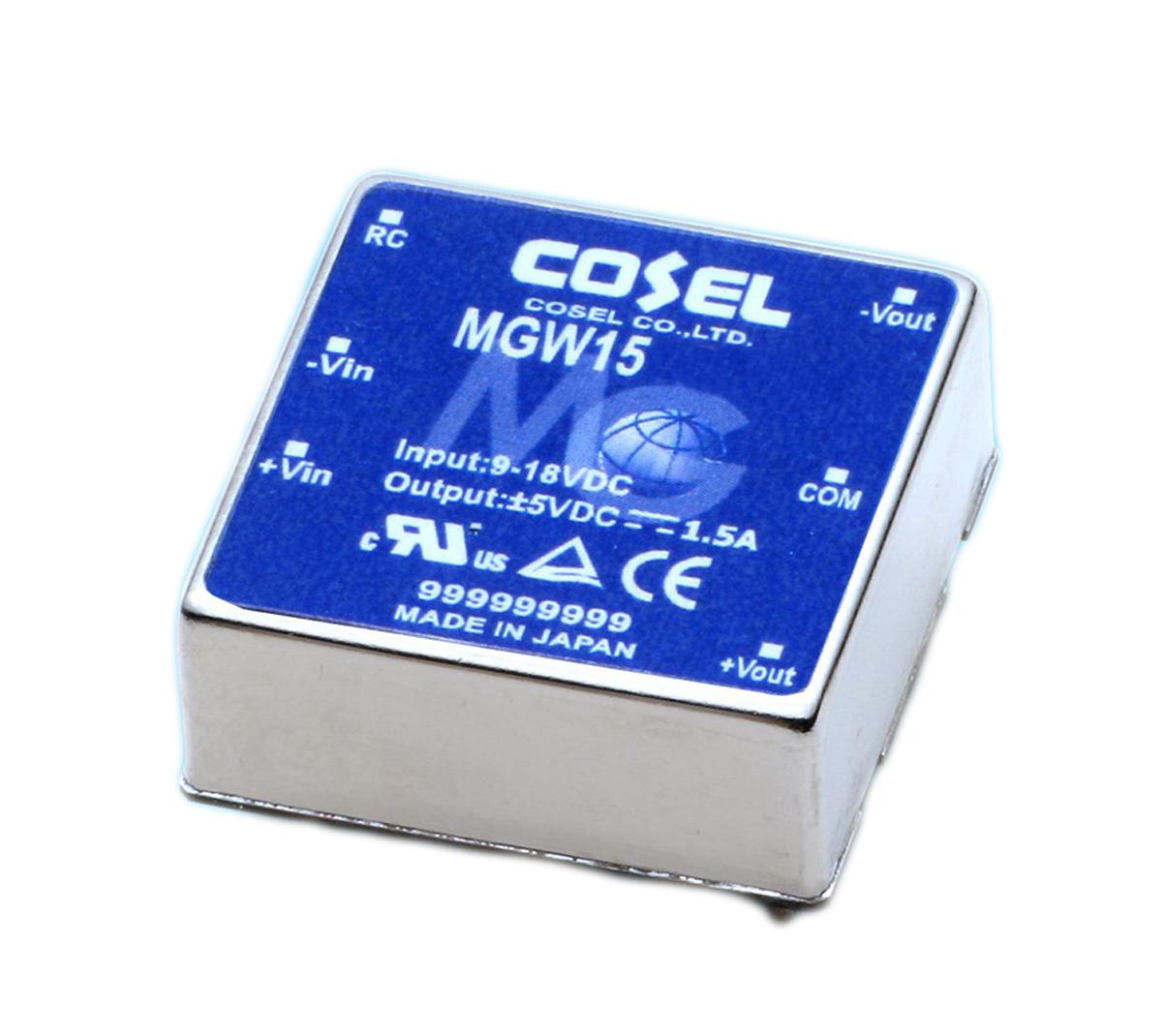

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : Cosel
Manufacturer Part No : MGW151215
Enrgtech Part No : ET10001786
Product Range : PolySwitch RXEF Series

Cosel 15W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout ±15V dc, I/O isolation 1.5kV dc

MGW Series, 15W Dual Output DC-DC Converters The MGW series of isolated DC-DC converters from Cosel are constructed with a standard 1" x 1" or 1" x 2" footprint. A shielded diecast housing metal case ensures low EMI. Featuring a field failure rate of less than 0.001%, MGW isolated DC-DC converters are highly reliable. Built in overcurrent protection circuitry allows automatic recovery. Features and Benefits: 6 sided shield 1500 V dc isolation between input and output I/O isolation voltage DC1,500 V (1 min) Built in remote ON/OFF Output voltage can be adjusted by an external variable resistor Convection/forced air cooling Internal fuse protection for safety Standards UL-60950-1, cUL, EN60950-1 Approvals UL, C-UL, TÜV, CE Cosel Isolated DC-DC Converters

Product Information

Number of Outputs : 2
Load Regulation : 750mV
Isolation Voltage : 1.5kV dc
Output Current : 500mA
Mounting Type : Through Hole
Maximum Temperature : +85°C
Minimum Temperature : -40°C
Input Voltage Range : 9 → 18 V dc
Length : 25.4mm
Efficiency : 88%
Depth : 9.9mm
Output Voltage : ±15V dc
Input Voltage Nominal : 9 → 18 V dc
Power Rating : 15W
rohs : RoHS Certificate of Compliance

Technical Documents

  • MGW15 DC-DC Converters PCB Mount Type Data Sheet (Technical Reference)
  • MGS Instruction Manual (Technical Reference)

Availability:
70
in stock
Check now

Rate:
  • 1-4
    +
    £ 30.892
  • 5-9
    +
    £ 29.359
  • 10-24
    +
    £ 27.807

Qty:
