Danfoss Basic Operator Panel for use with FC 280 Midi Drive

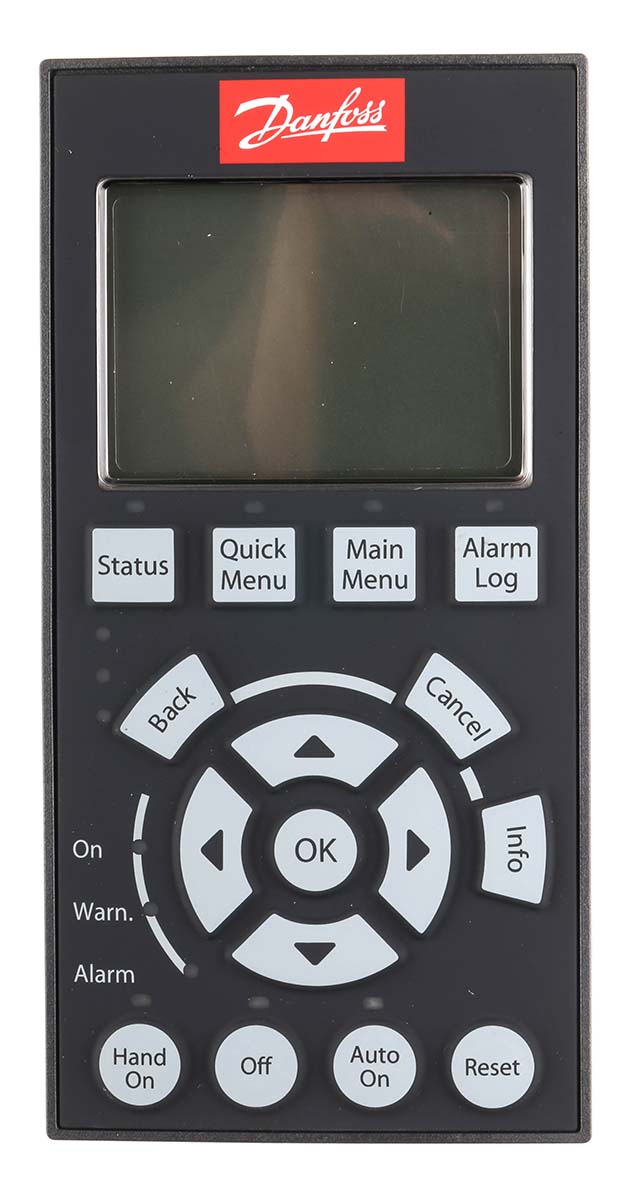

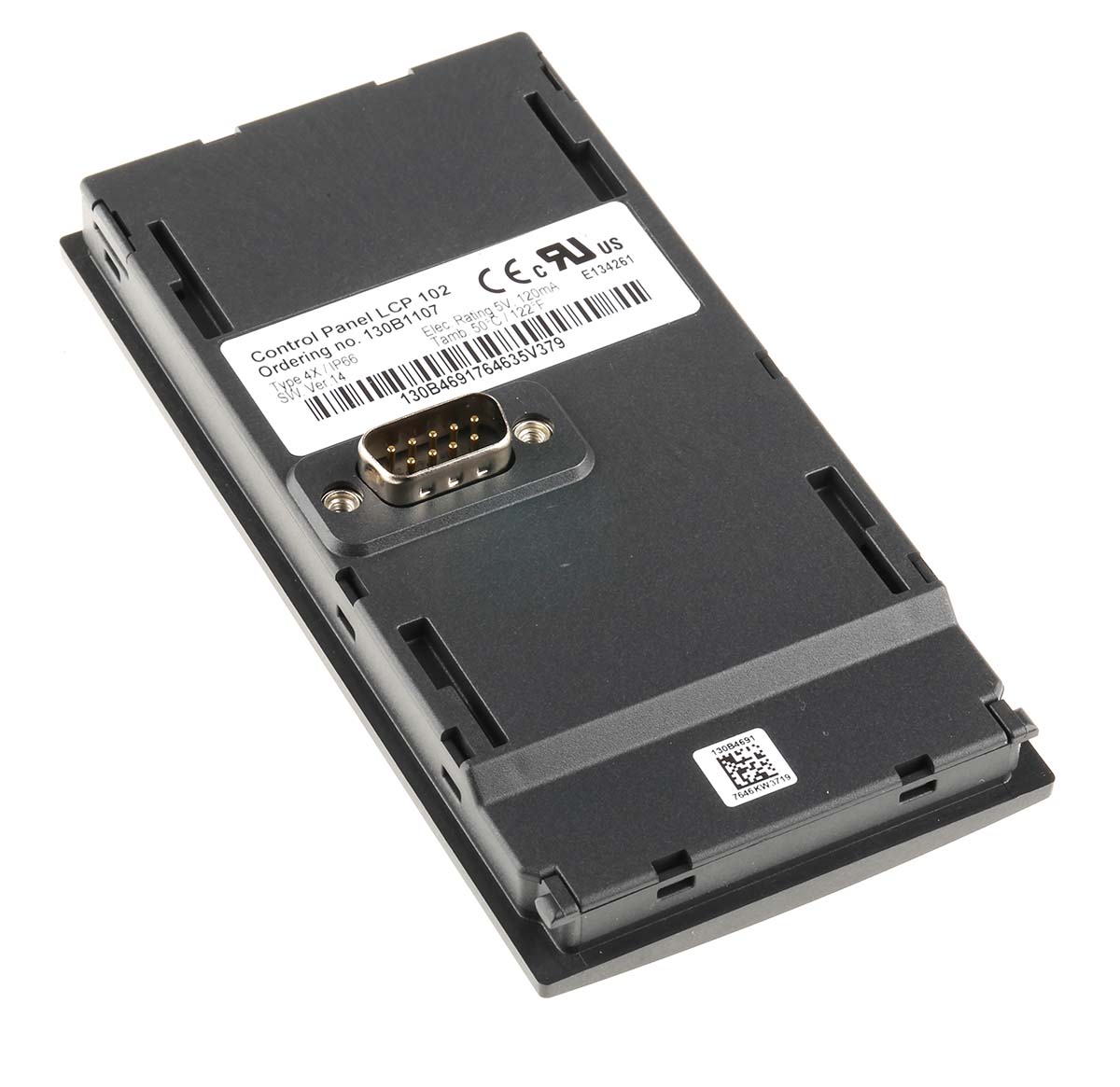

The Danfoss 130B1107 is the Graphical Local Control Panel (LCP 102) accessory for various VLT® frequency converter families, including the FC 102, FC 202, FC 280, and FC 300 series. This illuminated graphical display is the primary human-machine interface for the drive, providing a user-friendly platform for monitoring, controlling, and configuring the variable speed drive. It supports plain text in multiple languages and features quick menus, online help, and the ability to save and copy parameter sets, streamlining the commissioning and maintenance of the drive system.

Benefits of Using the Danfoss 130B1107 LCP 102 Control Panel

This control panel simplifies drive operation and fault diagnostics through its illuminated graphical display and plain-text communication, replacing cryptic codes with clear information. The ability to copy and save parameter sets dramatically reduces setup time when commissioning multiple identical drives, ensuring consistency and minimising errors.

Standout Features & Application Areas of the LCP 102 Control Panel

• Standout Features:
  • Illuminated graphical display with plain text for intuitive operation and clear feedback.
  • Quick menu function allows for fast commissioning of the drive.
  • Ability to save and copy parameter sets to other VLT drives.
  • Includes online help for guidance on specific functions.
  • Multi-language support for global use.
• Application Areas:
  • Commissioning and setting up Danfoss VLT® frequency converters (FC series).
  • Troubleshooting, monitoring, and controlling motor speeds in industrial applications.
  • HVAC, water and wastewater, and general machinery control systems.

For more information please check the datasheets.
