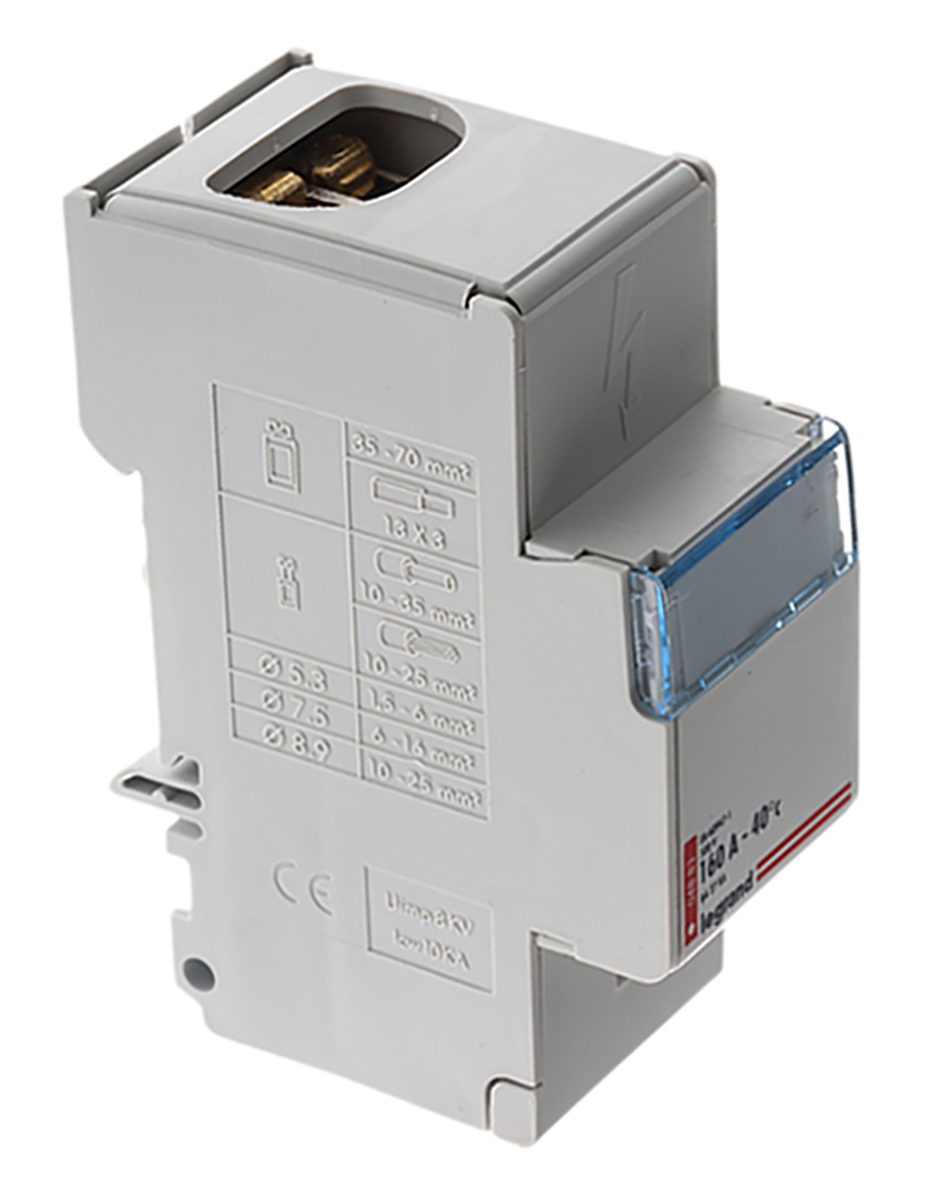

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : Legrand
Manufacturer Part No : 0 048 83
Enrgtech Part No : ET13889518
Product Range : PolySwitch RXEF Series

Interface Module, DIN Rail Mount, 13 Pole, 400 V, 160A, 101.5mm

Modular monobloc splitters Standard splitter Mounting onto Omega-type DIN rail or onto plate using 2 screws. Supplied with transparent rear insulating plate and front protective cover. Accept Cab 3 markers on each bar. Option to add an IP 2X terminal to increase the number of earth or neutral connections (except ref: 048 77). Resistance to incandescent wire to EN 60695-2-11. Double pole with terminals: fitted with 2 bars and four-poles with terminals: fitted with 4 bars. Characteristics Automatic terminal connection Double pole with terminals Ref. Current No. of terminals Rigid conductor No. flexible Legrand (A) per bar cross-section (mm2) modules (mm2) 048 81 40 11 1.5 → 4 0.75 → 4 6 2 6 → 16 4 → 10 048 80 100 5 2.5 → 10 1.5 → 10 4 2 10 → 25 6 → 16 Four-pole with terminals Ref. Current No. of terminals Rigid conductor No. flexible Legrand (A) per bar cross-section (mm2) modules (mm2) 048 85 40 11 1.5 → 4 0.75 → 4 6 2 6 → 16 4 → 10 048 84 100 5 2.5 → 10 1.5 → 10 4 2 10 → 25 6 → 16 048 86 125 7 2.5 → 10 1.5 → 10 6 2 10 → 25 6 → 16 2 10 → 35 10 → 25 048 88 125 11 2.5 → 10 1.5 → 10 8 4 10 → 35 6 → 25 048 79 160 8 2.5 → 10 1.5 → 10 10 4 10 → 25 6 → 16 2 10 → 35 10 → 25 1 35 → 70 35 → 70

Product Information

Current Rating : 160A
Dimensions : 101.5 x 144 x 60mm
Mounting Type : DIN Rail Mount
Voltage Rating : 400 V
Body Orientation : Straight
Length : 101.5mm
Width : 144mm
Depth : 60mm
Cable CSA : 2.5 → 10 mm, 6 → 25 mm, 10 → 35 mm, 35 → 70 mm
Number of Contacts : 13

Technical Documents


Availability:
5
in stock
Check now

Rate:
  • 1-9
    +
    £ 41.121
  • 10-19
    +
    £ 39.074
  • 20
    +
    £ 36.998

Qty:
