Width:
2.9 mm
Input Offset Current:
400 pA
Height:
1.2mm
Automotive Standard:
AEC-Q100
GBP - Gain Bandwidth Product:
1.6MHz
Minimum Supply Voltage:
1.8V
Package Type:
SOT-23
Number of Channels:
1
Product Type:
Operational Amplifier
Maximum Operating Temperature:
125°C
Length:
2.8mm
Standards/Approvals:
industrial/automotive options, RoHS, 4 kV HBM ESD, ESDA-JS-001-2017, ECCN US EAR99/EU NEC, AEC-Q100 (automotive grade)
Input Bias Current:
200 pA
Pin Count:
5
Mount Type:
Surface
Vos - Input Offset Voltage:
7 μV at 25 °C
Output Current:
30mA

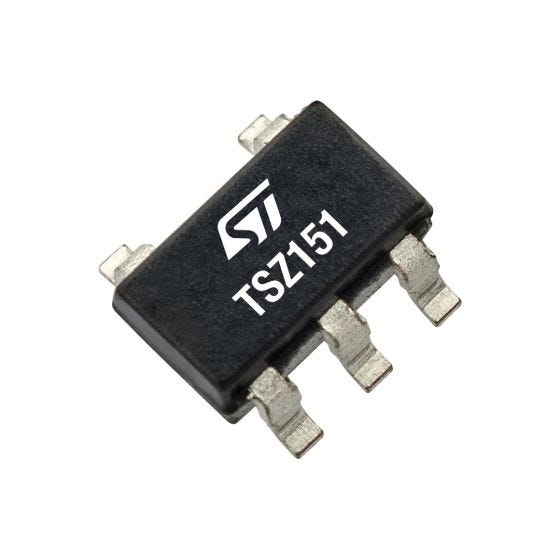

Series:
TSZ151
Maximum Supply Voltage:
5.5V
Minimum Operating Temperature:
-40°C
Slew Rate:
0.8V/μs
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
30 mA
Operating Temperature:
-40°C ~ 125°C
Package / Case:
SC-74A, SOT-753
Current - Input Bias:
50 pA
Voltage - Input Offset:
1 µV
Voltage - Supply Span (Max):
5.5 V
Voltage - Supply Span (Min):
1.8 V
REACH Status:
REACH Unaffected
Output Type:
Single Ended, Rail-to-Rail
Current - Supply:
210µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
0.8V/µs
Qualification:
AEC-Q100
standardLeadTime:
14 Weeks
Number of Circuits:
1
Gain Bandwidth Product:
1.6 MHz
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Supplier Device Package:
SOT-23-5
Packaging:
Tape & Reel (TR)
Amplifier Type:
Chopper (Zero-Drift)
