Number of Outputs:
1
Load Regulation:
±1%
Output Current:
2.5A
Standards Met:
CB IEC60950-1, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, TUV EN60950-1, UL Listed UL508/UL60950
Mounting Type:
DIN Rail Mount
Maximum Temperature:
+70°C
Series:
DSR120
Electrical Phase:
1
AC or DC Input Voltage:
ac
Height:
124mm
Width:
32mm
Depth:
119mm
MTBF:
300kh
Output Voltage:
48V dc
Minimum Temperature:
-25°C
AC or DC Output Voltage:
dc
Power Rating:
120W
Ripple And Noise:
240mV Pk-Pk
Type:
Power Supply
Input Voltage:
85 → 264V ac
Base Product Number:
DSR120
HTSUS:
8504.40.9520
RoHS Status:
ROHS3 Compliant
Power (Watts):
120W
Current - Output (Max):
2.5A
Approval Agency:
CB, CE, cURus, cULus, TUV
Input Type:
AC
Applications:
Industrial, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
48V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
92%
Package:
Box
Minimum Load Required:
No
Size / Dimension:
4.47" L x 1.26" W x 4.88" H (113.5mm x 32.0mm x 124.0mm)
standardLeadTime:
16 Weeks
Voltage - Isolation:
3 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, Universal Input
Series:
DSR120 (120W)
Operating Temperature:
-25°C ~ 70°C (With Derating)
Standard Number:
62368-1
Number of Outputs:
1
ECCN:
EAR99

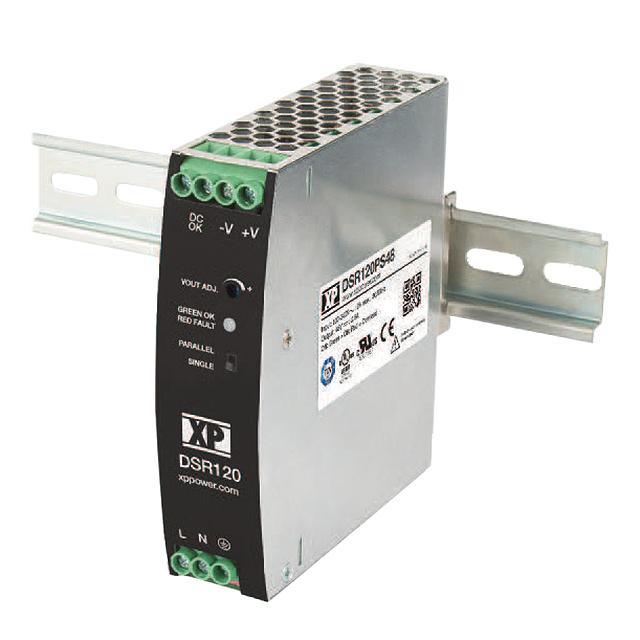

This is DIN Rail Power Supply 48V 120W manufactured by XP Power. The manufacturer part number is DSR120PS48. Additionally, the product is supplied with 1 outputs. Load Regulation - ±1%. It carries 2.5a output current. The product complies with all safety standards, such as cb iec60950-1, en55024, en61000-4-2, en61000-4-3, en61000-4-4, en61000-4-5, en61000-4-6, en61000-4-8, tuv en60950-1, ul listed ul508/ul60950. The product is available in din rail mount configuration. The product has +70°c maximum temperature. The product dsr120, is a highly preferred choice for users. Its electrical phase configuration includes 1. It has ac input voltage. In addition, the height is 124mm. Furthermore, the product is 32mm wide. The product comes in 119mm depth. The MTBF values include 300kh. Features a 48v dc output voltage. While its minimum temperature is -25°c. It has a/an dc output voltage . Feature 120w of power rating. Carries 240mv pk-pk ripple and noise. It comes in power supply configuration. Its input voltage is 85 → 264v ac. Moreover, it corresponds to dsr120, a base product number of the product. It is assigned with possible HTSUS value of 8504.40.9520. The product is rohs3 compliant. The product features power and watts of 120w. The maximum product's output current is 2.5a. It is approved by cb, ce, curus, culus, tuv. It carries ac input type. The product is widely employed in industrial, ite (commercial). It has a 48v output voltage. It is a highly efficient product with an 92% of high efficiency. It is shipped in box package . Does it require minimum load? no. The product's diameters include 4.47" l x 1.26" w x 4.88" h (113.5mm x 32.0mm x 124.0mm). It has a long 16 weeks standard lead time. 3 kv of isolation voltage. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, universal input. The product dsr120 (120w), is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. Standard number include: 62368-1. The product is designated with the ear99 code number.
