Number of Outputs:
1
Ripple And Noise:
<100mV Pk-Pk
Output Current:
20A
Standards Met:
ATEX, CE, cRUus, cULus, IECEx, RoHS Compliant
Mounting Type:
DIN Rail Mount
Maximum Temperature:
+60°C
Series:
SDN-C
Electrical Phase:
1
Special Features:
Active Power Factor Correction, High MTBF Means High Reliability and Long Life, Highly Efficient Switching Technology
AC or DC Input Voltage:
ac, dc
Height:
123mm
Width:
127mm
Depth:
127mm
MTBF:
>450000h
Output Voltage:
24V dc
Minimum Temperature:
-25°C
AC or DC Output Voltage:
dc
Power Rating:
480W
Input Voltage:
85 → 264V ac
HTSUS:
8504.40.9530
RoHS Status:
RoHS Compliant
Power (Watts):
480W
Current - Output (Max):
20A
Approval Agency:
CE, cULus, cURus, EAC
Input Type:
AC or DC
Applications:
Hazardous Locations, Industrial, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
24V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
92%
DC Voltage - Input (Max):
275V
Package:
Bulk
DC Voltage - Input (Min):
90V
Minimum Load Required:
-
Size / Dimension:
4.98" L x 3.42" W x 4.85" H (126.5mm x 86.9mm x 123.2mm)
standardLeadTime:
12 Weeks
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Adjustable Output, IP20, Universal Input
Series:
SDN-C
Operating Temperature:
-40°C ~ 70°C (With Derating)
Base Product Number:
SDN20
Number of Outputs:
1
ECCN:
EAR99

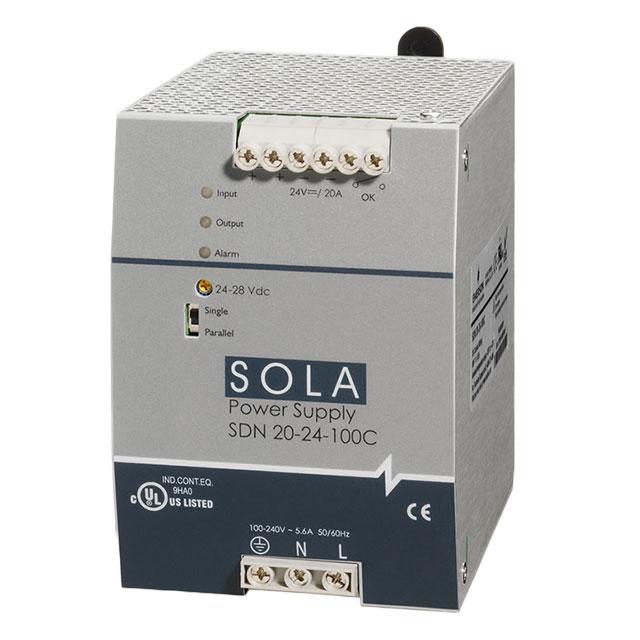

This is SDN-C DIN Rail Power Supply 480W 24V dc/ 20A manufactured by SolaHD. The manufacturer part number is SDN20-24-100C. Additionally, the product is supplied with 1 outputs. Carries <100mv pk-pk ripple and noise. It carries 20a output current. The product complies with all safety standards, such as atex, ce, cruus, culus, iecex, rohs compliant. The product is available in din rail mount configuration. The product has +60°c maximum temperature. The product sdn-c, is a highly preferred choice for users. Its electrical phase configuration includes 1. The product also provides special features, such as active power factor correction, high mtbf means high reliability and long life, highly efficient switching technology. It has ac, dc input voltage. In addition, the height is 123mm. Furthermore, the product is 127mm wide. The product comes in 127mm depth. The MTBF values include >450000h. Features a 24v dc output voltage. While its minimum temperature is -25°c. It has a/an dc output voltage . Feature 480w of power rating. Its input voltage is 85 → 264v ac. It is assigned with possible HTSUS value of 8504.40.9530. The product is rohs compliant. The product features power and watts of 480w. The maximum product's output current is 20a. It is approved by ce, culus, curus, eac. It carries ac or dc input type. The product is widely employed in hazardous locations, industrial, ite (commercial). It has a 24v output voltage. It is a highly efficient product with an 92% of high efficiency. It has 275v of maximum DC input voltage. It is shipped in bulk package . While the minimum DC input voltage is 90v. The product's diameters include 4.98" l x 3.42" w x 4.85" h (126.5mm x 86.9mm x 123.2mm). It has a long 12 weeks standard lead time. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include adjustable output, ip20, universal input. The product has -40°c ~ 70°c (with derating) operating temperature range. Moreover, it corresponds to sdn20, a base product number of the product. The product is designated with the ear99 code number.
