Number of Outputs:
2
Ripple And Noise:
50mV Pk-Pk
Output Current:
3A
Standards Met:
DIN VDE 0100-410, EN 50121-4, EN 50178, EN 60204-1, EN 60204-1 (PELV), EN 61000-3-2, IEC 60950-1 (SELV), IEC 60950-1/VDE 0805 (SELV), SEMI F47-0706, UL Listed UL 508, UL/C-UL Reconized UL 60950-1, VDE 0160 (PELV)
Mounting Type:
DIN Rail Mount
Maximum Temperature:
+70°C
Series:
TRIO-PS-2G/1AC/24DC/3/C2LPS
Electrical Phase:
1
Special Features:
All Functions and The Space-Saving Design of The Single and Three-Phase Modules are Optimally Tailored to The Stringent Requirements, The TRIO POWER Power Supply Range With Push-in Connection Has Been Perfected For Use in Machine Building
AC or DC Input Voltage:
ac
Height:
130mm
Width:
30mm
Depth:
115mm
MTBF:
>3500000 h @ 25 °C
Output Voltage:
24V dc
Minimum Temperature:
-25°C
AC or DC Output Voltage:
dc
Power Rating:
72W
Type:
Switch Mode
Input Voltage:
85 → 264V ac
HTSUS:
8504.40.6018
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
72W
Current - Output (Max):
3A
Approval Agency:
cULus, cURus, EAC
Input Type:
AC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
2903147 Models
Efficiency:
89%
edacadModelUrl:
/en/models/6163395
Package:
Bulk
Minimum Load Required:
-
Size / Dimension:
4.53" L x 1.18" W x 5.12" H (115.0mm x 30.0mm x 130.0mm)
standardLeadTime:
14 Weeks
Voltage - Isolation:
4 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, Universal Input
Series:
TRIO
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99

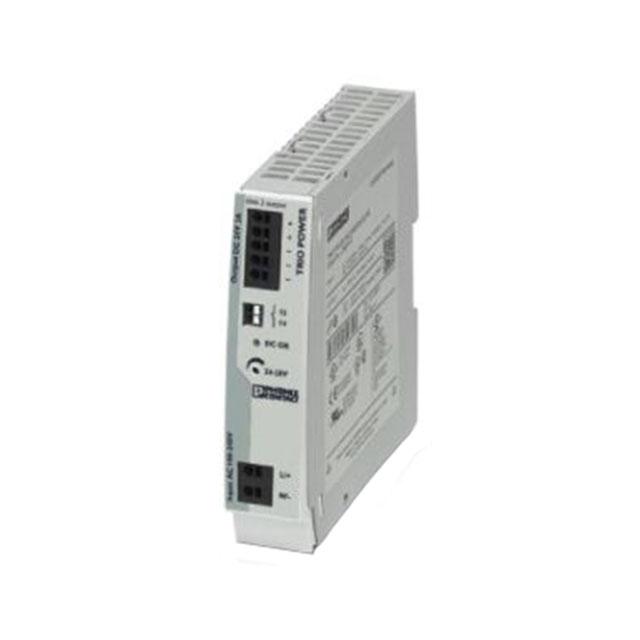

This is manufactured by Phoenix Contact. The manufacturer part number is 2903147. Additionally, the product is supplied with 2 outputs. Carries <lteq/>50mv pk-pk ripple and noise. It carries 3a output current. The product complies with all safety standards, such as din vde 0100-410, en 50121-4, en 50178, en 60204-1, en 60204-1 (pelv), en 61000-3-2, iec 60950-1 (selv), iec 60950-1/vde 0805 (selv), semi f47-0706, ul listed ul 508, ul/c-ul reconized ul 60950-1, vde 0160 (pelv). The product is available in din rail mount configuration. The product has +70°c maximum temperature. The product trio-ps-2g/1ac/24dc/3/c2lps, is a highly preferred choice for users. Its electrical phase configuration includes 1. The product also provides special features, such as all functions and the space-saving design of the single and three-phase modules are optimally tailored to the stringent requirements, the trio power power supply range with push-in connection has been perfected for use in machine building. It has ac input voltage. In addition, the height is 130mm. Furthermore, the product is 30mm wide. The product comes in 115mm depth. The MTBF values include >3500000 h @ 25 °c. Features a 24v dc output voltage. While its minimum temperature is -25°c. It has a/an dc output voltage . Feature 72w of power rating. It comes in switch mode configuration. Its input voltage is 85 → 264v ac. It is assigned with possible HTSUS value of 8504.40.6018. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 72w. The maximum product's output current is 3a. It is approved by culus, curus, eac. It carries ac input type. The product is widely employed in ite (commercial). In addition, it is reach affected. It is a highly efficient product with an 89% of high efficiency. It is shipped in bulk package . The product's diameters include 4.53" l x 1.18" w x 5.12" h (115.0mm x 30.0mm x 130.0mm). It has a long 14 weeks standard lead time. 4 kv of isolation voltage. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, universal input. The product trio, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
