Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac
Width:
37mm
MTBF:
>868000h
Electrical Phase:
1
Type:
Switch Mode
Standards Met:
CB Scheme, DIN VDE 0100-410, EN 50178/VDE 0160 (PELV), EN 60204-1, EN 60715, EN 60950-1 (SELV) and EN 60204 (PELV), EN 60950-1/VDE 0805 (SELV), EN 61000-3-2, EN 61000-4-11, EN 61000-6-2:2005, EN 61558-2-16, UL Listed UL 508, UL/C-UL Recognized UL 60950
Efficiency:
94%
Input Voltage:
85 → 264V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
±1%
Ripple And Noise:
<40mV Pk-Pk
Depth:
125mm
Special Features:
Idle and Short Circuit Proof
Mounting Type:
DIN Rail Mount
Output Current:
6.25A
Series:
UNO-PS/1AC/24DC/150W
Height:
130mm
Output Voltage:
24V dc
Power Rating:
150W
HTSUS:
8504.40.6018
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
150W
Current - Output (Max):
6.25A
Approval Agency:
CB, cULus, cURus
Input Type:
AC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
2904376 Models
Efficiency:
94%
edacadModelUrl:
/en/models/5253179
Package:
Bulk
Minimum Load Required:
-
Size / Dimension:
4.92" L x 1.46" W x 5.12" H (125.0mm x 37.0mm x 130.0mm)
standardLeadTime:
8 Weeks
Voltage - Isolation:
3 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
IP20, Load Sharing, Universal Input
Series:
UNO
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99

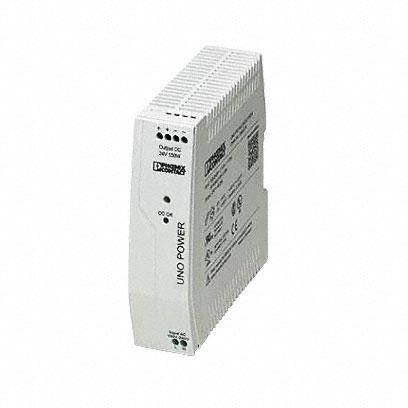

This is manufactured by Phoenix Contact. The manufacturer part number is 2904376. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac input voltage. Furthermore, the product is 37mm wide. The MTBF values include >868000h. Its electrical phase configuration includes 1. It comes in switch mode configuration. The product complies with all safety standards, such as cb scheme, din vde 0100-410, en 50178/vde 0160 (pelv), en 60204-1, en 60715, en 60950-1 (selv) and en 60204 (pelv), en 60950-1/vde 0805 (selv), en 61000-3-2, en 61000-4-11, en 61000-6-2:2005, en 61558-2-16, ul listed ul 508, ul/c-ul recognized ul 60950. It is a highly efficient product with an 94% of high efficiency. Its input voltage is 85 → 264v ac. Additionally, the product is supplied with 1 outputs. It has ±1% of output voltage adjustment range. Carries <40mv pk-pk ripple and noise. The product comes in 125mm depth. The product also provides special features, such as idle and short circuit proof. The product is available in din rail mount configuration. It carries 6.25a output current. The product uno-ps/1ac/24dc/150w, is a highly preferred choice for users. In addition, the height is 130mm. Features a 24v dc output voltage. Feature 150w of power rating. It is assigned with possible HTSUS value of 8504.40.6018. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 150w. The maximum product's output current is 6.25a. It is approved by cb, culus, curus. It carries ac input type. The product is widely employed in ite (commercial). In addition, it is reach affected. It is shipped in bulk package . The product's diameters include 4.92" l x 1.46" w x 5.12" h (125.0mm x 37.0mm x 130.0mm). It has a long 8 weeks standard lead time. 3 kv of isolation voltage. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include ip20, load sharing, universal input. The product uno, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. The product is designated with the ear99 code number.
