Base Product Number:
QS20
HTSUS:
8504.40.9530
RoHS Status:
ROHS3 Compliant
Power (Watts):
480W
Current - Output (Max):
10A
Approval Agency:
ABS, CSA, DNV GL, EAC, IEC, UL
Input Type:
AC or DC
Applications:
Hazardous Locations, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
48V
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
QS20.481 Models
Efficiency:
94.3%
edacadModelUrl:
/en/models/6591520
DC Voltage - Input (Max):
187V
Package:
Box
DC Voltage - Input (Min):
88V
Minimum Load Required:
-
Size / Dimension:
5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
standardLeadTime:
2 Weeks
Voltage - Isolation:
500 V
AC Voltage - Input:
85 ~ 276 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, Load Sharing, PFC
Series:
DIMENSION Q (480W)
Operating Temperature:
-10°C ~ 70°C (With Derating)
Standard Number:
Class I Div 2; 508; 60950-1; 61010-2-201
Number of Outputs:
1
ECCN:
EAR99

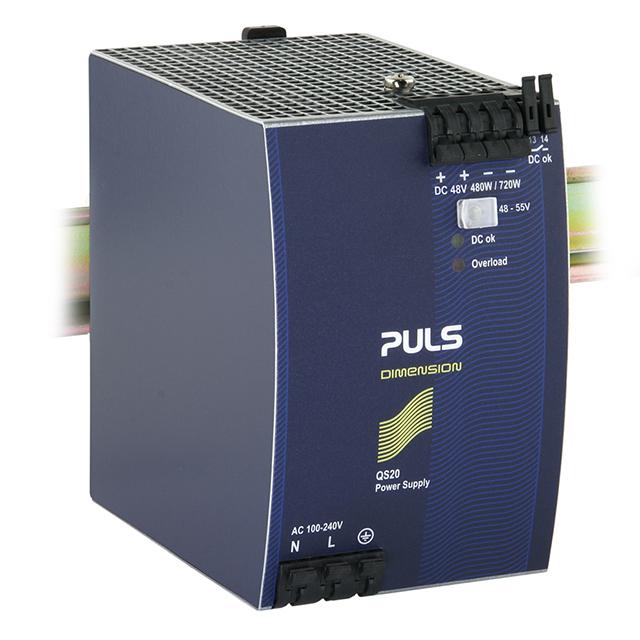

This is manufactured by PULS, LP. The manufacturer part number is QS20.481. Moreover, it corresponds to qs20, a base product number of the product. It is assigned with possible HTSUS value of 8504.40.9530. The product is rohs3 compliant. The product features power and watts of 480w. The maximum product's output current is 10a. It is approved by abs, csa, dnv gl, eac, iec, ul. It carries ac or dc input type. The product is widely employed in hazardous locations, ite (commercial). It has a 48v output voltage. It is a highly efficient product with an 94.3% of high efficiency. It has 187v of maximum DC input voltage. It is shipped in box package . While the minimum DC input voltage is 88v. The product's diameters include 5.00" l x 3.23" w x 4.88" h (127.0mm x 82.0mm x 124.0mm). It has a long 2 weeks standard lead time. 500 v of isolation voltage. The product has an AC input voltage range of 85 ~ 276 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, load sharing, pfc. The product dimension q (480w), is a highly preferred choice for users. The product has -10°c ~ 70°c (with derating) operating temperature range. Standard number include: class i div 2; 508; 60950-1; 61010-2-201. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
