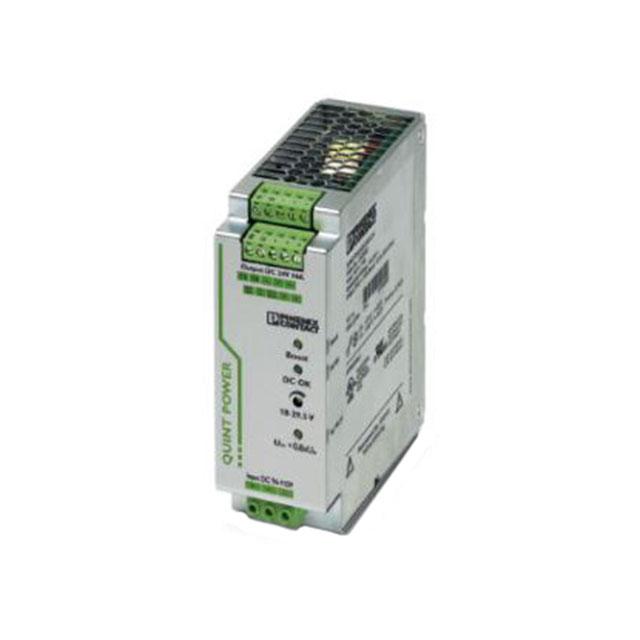

Phoenix Contact 2905008
Product Information
Number of Outputs:
1
Isolation Voltage:
1.5kV dc
Standards Met:
cULus Recognized, UL 508, UL 60950-1, UL listed
Mounting Type:
DIN Rail Mount
Maximum Temperature:
+70°C
Series:
QUINT-PS/48DC/48DC/5
Input Voltage Range:
30 → 60 V dc
Isolated:
Yes
Width:
125mm
Depth:
130mm
Output Voltage:
30 → 56V dc
Length:
48mm
Minimum Temperature:
-25°C
Input Voltage Nominal:
48 V dc
Power Rating:
20W
Output Current:
5A
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
48V
Power (Watts):
-
Current - Output (Max):
5A
Approval Agency:
cUL, cULus, EAC, UL
Input Type:
DC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
2905008 Models
Efficiency:
93%
edacadModelUrl:
/en/models/6163020
DC Voltage - Input (Max):
60V
Package:
Bulk
DC Voltage - Input (Min):
30V
Minimum Load Required:
-
Size / Dimension:
4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm)
standardLeadTime:
8 Weeks
Voltage - Isolation:
1.5 kV
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20
Series:
Quint
Operating Temperature:
-25°C ~ 75°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2905008 on website for other similar products.
We accept all major payment methods for all products including ET10859591. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2905008 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Industrial, DIN Rail Power Supplies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2905008. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2905008.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10859591 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10859591.
Yes. We ship 2905008 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2905008. Additionally, the product is supplied with 1 outputs. It has 1.5kv dc isolation voltage. The product complies with all safety standards, such as culus recognized, ul 508, ul 60950-1, ul listed. The product is available in din rail mount configuration. The product has +70°c maximum temperature. The product quint-ps/48dc/48dc/5, is a highly preferred choice for users. It has 30 → 60 v dc of input voltage range. Isolated options - yes. Furthermore, the product is 125mm wide. The product comes in 130mm depth. Features a 30 → 56v dc output voltage. Its accurate length is 48mm. While its minimum temperature is -25°c. It has 48 v dc of nominal input voltage. Feature 20w of power rating. It carries 5a output current. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. It has a 48v output voltage. The maximum product's output current is 5a. It is approved by cul, culus, eac, ul. It carries dc input type. The product is widely employed in ite (commercial). In addition, it is reach affected. It is a highly efficient product with an 93% of high efficiency. It has 60v of maximum DC input voltage. It is shipped in bulk package . While the minimum DC input voltage is 30v. The product's diameters include 4.92" l x 1.89" w x 5.12" h (125.0mm x 48.0mm x 130.0mm). It has a long 8 weeks standard lead time. 1.5 kv of isolation voltage. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20. The product quint, is a highly preferred choice for users. The product has -25°c ~ 75°c (with derating) operating temperature range. The product is designated with the ear99 code number.
