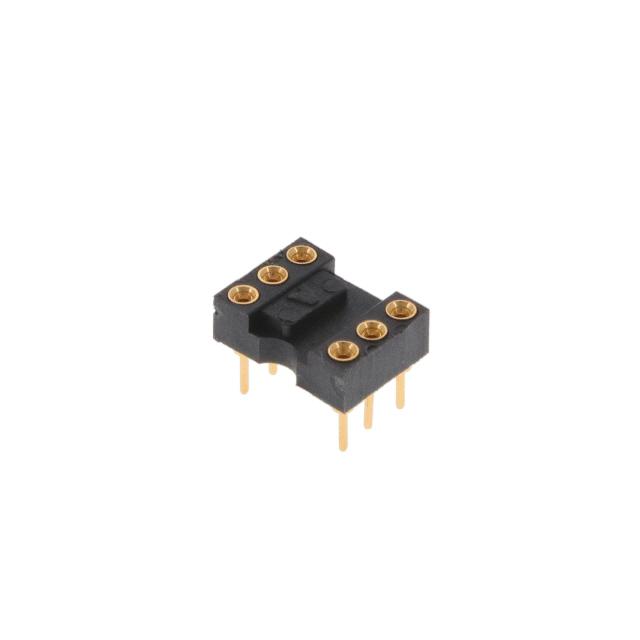

TE Connectivity AMP Connectors 506-AG10D
Product Information
Contact Resistance:
10mOhm
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Housing Material:
-
Operating Temperature:
-55°C ~ 125°C
Number of Positions or Pins (Grid):
6 (2 x 3)
Contact Finish Thickness - Post:
25.0µin (0.63µm)
Contact Material - Mating:
Beryllium Copper
Type:
DIP, 0.3" (7.62mm) Row Spacing
Contact Finish - Mating:
Gold
REACH Status:
REACH Affected
edacadModel:
506-AG10D Models
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2262137
Contact Material - Post:
Brass
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.125" (3.18mm)
Series:
500
Contact Finish Thickness - Mating:
25.0µin (0.63µm)
ECCN:
EAR99
Base Product Number:
506
Pitch - Post:
0.100" (2.54mm)
Checking for live stock
FAQs
Yes. You can also search 506-AG10D on website for other similar products.
We accept all major payment methods for all products including ET13103083. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 506-AG10D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IC Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 506-AG10D. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 506-AG10D.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13103083 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13103083.
Yes. We ship 506-AG10D Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 506-AG10D. It features a 10mohm contact resistance. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 125°c operating temperature range. The product is supplied with 6 (2 x 3) positions/pins. Additionally, it features 25.0µin (0.63µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is reach affected. The post (contact material) is designed from high stable brass. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in through hole configuration. The termination post is a 0.125" (3.18mm) long. The product 500, is a highly preferred choice for users. However, 25.0µin (0.63µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 506, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).
