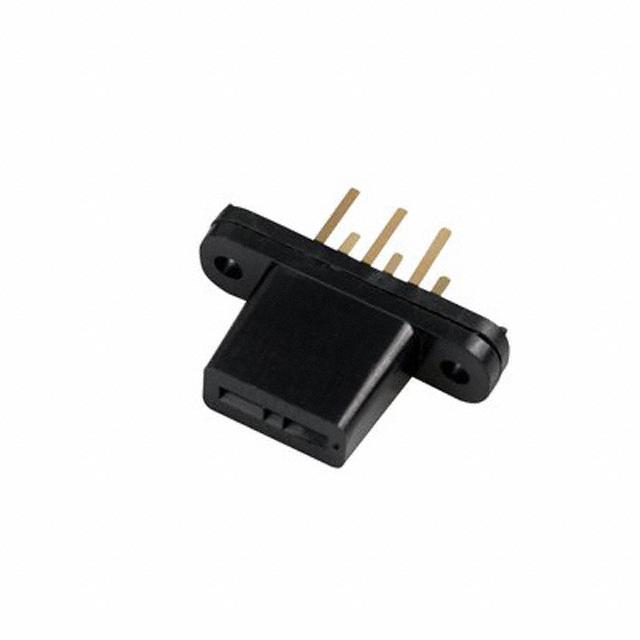

3M 203-2737-55-1102
Product Information
Current Rating:
1A
Mounting Type:
Through Hole
Voltage Rating:
100 V dc
Gender:
Female
Body Orientation:
Straight
Packages Accepted:
TO-3, TO-66
Housing Material:
PPS
Contact Plating:
Gold over Nickel
Termination Method:
Solder
Number of Contacts:
6
Contact Material:
Beryllium Copper
Contact Resistance:
25mOhm
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature:
-55°C ~ 150°C
Number of Positions or Pins (Grid):
3 (Rectangular)
Contact Finish Thickness - Post:
30.0µin (0.76µm)
Contact Material - Mating:
Beryllium Copper
Type:
Transistor, TO-3 and TO-66
Contact Finish - Mating:
Gold
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
Beryllium Copper
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
-
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.370" (9.40mm)
Series:
Textool™
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
ECCN:
EAR99
Base Product Number:
203
Pitch - Post:
0.234" (5.94mm)
Checking for live stock
FAQs
Yes. You can also search 203-2737-55-1102 on website for other similar products.
We accept all major payment methods for all products including ET12012720. Please check your shopping cart at the time of order.
You can order 3M brand products with 203-2737-55-1102 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IC Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 203-2737-55-1102. You can also check on our website or by contacting our customer support team for further order details on 3M 203-2737-55-1102.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12012720 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12012720.
Yes. We ship 203-2737-55-1102 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 203-2737-55-1102. The product has a current rating of 1a. The product is available in through hole configuration. Moreover, the product has a nominal 100 v dc voltage rating. In addition, female is the available "Gender" of the product. It has straight body orientation. The product also features robust pps housing material. The high-quality gold over nickel is used as contact plating material. It allows solder termination method. The product contains 6 contacts. The product is made from sturdy beryllium copper materials. It features a 25mohm contact resistance. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyphenylene sulfide (pps), glass filled housing material. The product has -55°c ~ 150°c operating temperature range. The product is supplied with 3 (rectangular) positions/pins. Additionally, it features 30.0µin (0.76µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in transistor, to-3 and to-66 configuration. It has nice contact finishing of gold. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable beryllium copper. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 1 a. The splendid features of the product include closed frame. The termination post is a 0.370" (9.40mm) long. The product textool™, is a highly preferred choice for users. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 203, a base product number of the product. The given pitch of the item is 0.234" (5.94mm).
