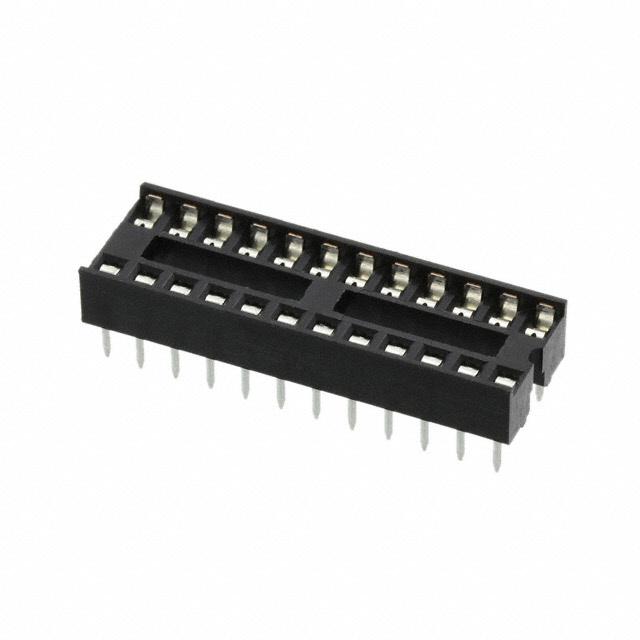

TE Connectivity AMP Connectors 1-2199298-8

1-2199298-8 TE Connectivity AMP Connectors
1-2199298-8
TE Connectivity AMP Connectors

Product Information

Contact Resistance:
20mOhm
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:
-40°C ~ 105°C
Number of Positions or Pins (Grid):
24 (2 x 12)
Contact Finish Thickness - Post:
-
Contact Material - Mating:
Phosphor Bronze
Type:
DIP, 0.3" (7.62mm) Row Spacing
Contact Finish - Mating:
Tin
REACH Status:
Vendor Undefined
edacadModel:
1-2199298-8 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5022044
Contact Material - Post:
Brass, Copper
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Open Frame
Mounting Type:
Through Hole
Termination Post Length:
0.118" (3.00mm)
Series:
Diplomate DL
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
ECCN:
EAR99
Base Product Number:
2199298
Pitch - Post:
0.100" (2.54mm)
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1-2199298-8. It features a 20mohm contact resistance. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polybutylene terephthalate (pbt), glass filled housing material. The product has -40°c ~ 105°c operating temperature range. The product is supplied with 24 (2 x 12) positions/pins. Its contact is manufactured from highly durable phosphor bronze. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of tin. In addition, it is vendor undefined. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable brass, copper. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 1 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include open frame. The product is available in through hole configuration. The termination post is a 0.118" (3.00mm) long. The product diplomate dl, is a highly preferred choice for users. However, 60.0µin (1.52µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 2199298, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).
