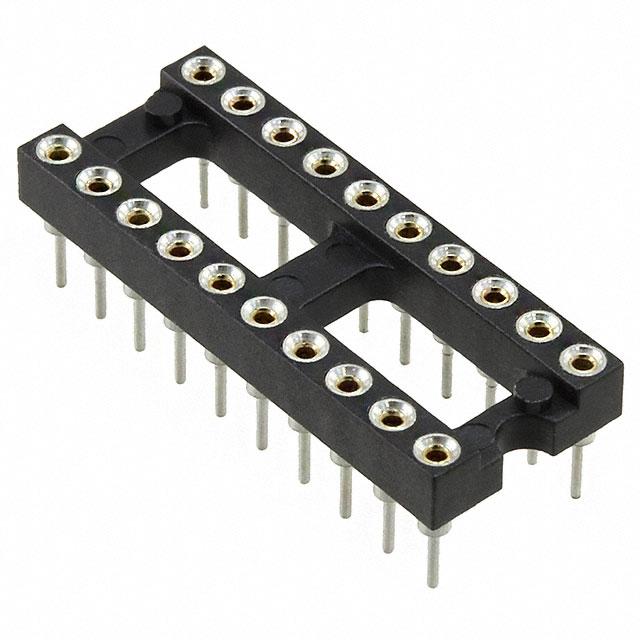

Harwin Inc. D2820-42

D2820-42 Harwin Inc.
Harwin Inc.

Product Information

Contact Resistance:
10mOhm
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Plastic
Operating Temperature:
-55°C ~ 125°C
Number of Positions or Pins (Grid):
20 (2 x 10)
Contact Finish Thickness - Post:
196.9µin (5.00µm)
Contact Material - Mating:
Beryllium Copper
Type:
DIP, 0.3" (7.62mm) Row Spacing
Contact Finish - Mating:
Gold
title:
D2820-42
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Harwin Inc.
Contact Material - Post:
Brass
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
26 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Open Frame
Mounting Type:
Through Hole
Termination Post Length:
0.126" (3.20mm)
Series:
D2
Packaging:
Tube
Contact Finish Thickness - Mating:
Flash
ECCN:
EAR99
Base Product Number:
D2820
Pitch - Post:
0.100" (2.54mm)
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is D2820-42. It features a 10mohm contact resistance. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust plastic housing material. The product has -55°c ~ 125°c operating temperature range. The product is supplied with 20 (2 x 10) positions/pins. Additionally, it features 196.9µin (5.00µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The harwin inc.'s product offers user-desired applications. The post (contact material) is designed from high stable brass. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 26 weeks standard lead time. Additionally, the product's output is 1 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include open frame. The product is available in through hole configuration. The termination post is a 0.126" (3.20mm) long. The product d2, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. However, flash is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to d2820, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).
