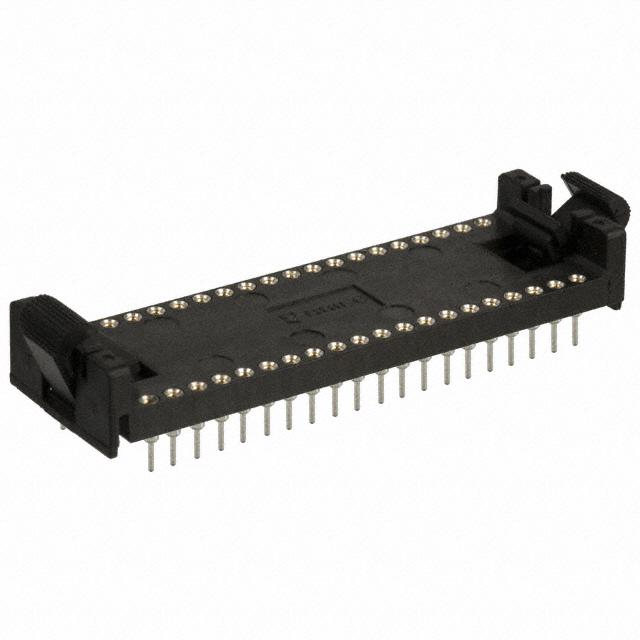

Aries Electronics 40-C182-10
Product Information
Row Width:
15.24mm
Number of Contacts:
40
Current Rating:
3A
Dimensions:
58.2 x 11.68 x 17.78mm
Mounting Type:
Through Hole
Minimum Operating Temperature:
-55°C
Termination Method:
Solder
Length:
58.2mm
Housing Material:
Nylon
Width:
11.68mm
Depth:
17.78mm
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Orientation:
Vertical
Contact Material:
Brass Alloy
Maximum Operating Temperature:
+125°C
Frame Type:
Closed Frame
Contact Resistance:
-
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature:
-55°C ~ 105°C
Number of Positions or Pins (Grid):
40 (2 x 20)
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Contact Material - Mating:
Beryllium Copper
Type:
DIP, 0.6" (15.24mm) Row Spacing
Contact Finish - Mating:
Gold
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
Brass
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
5 Weeks
Current Rating (Amps):
3 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.125" (3.18mm)
Series:
EJECT-A-DIP™
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
ECCN:
EAR99
Base Product Number:
40-C182
Pitch - Post:
0.100" (2.54mm)
Checking for live stock
FAQs
Yes. You can also search 40-C182-10 on website for other similar products.
We accept all major payment methods for all products including ET11271498. Please check your shopping cart at the time of order.
You can order Aries Electronics brand products with 40-C182-10 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IC Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Aries Electronics 40-C182-10. You can also check on our website or by contacting our customer support team for further order details on Aries Electronics 40-C182-10.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11271498 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Aries Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11271498.
Yes. We ship 40-C182-10 Internationally to many countries around the world.
This is manufactured by Aries Electronics. The manufacturer part number is 40-C182-10. Its row is 15.24mm in width . The product contains 40 contacts. The product has a current rating of 3a. The given dimensions of the product include 58.2 x 11.68 x 17.78mm. The product is available in through hole configuration. Whereas, the minimum operating temperature of the product is -55°c. It allows solder termination method. Its accurate length is 58.2mm. The product also features robust nylon housing material. Furthermore, the product is 11.68mm wide. The product comes in 17.78mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.54mm. The product has a vertical orientation. The product is made from sturdy brass alloy materials. It has a maximum operating temperature of +125°c. The frame is designed as [Fram Type] type. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyamide (pa46), nylon 4/6, glass filled housing material. The product has -55°c ~ 105°c operating temperature range. The product is supplied with 40 (2 x 20) positions/pins. Additionally, it features 200.0µin (5.08µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in dip, 0.6" (15.24mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable brass. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 5 weeks standard lead time. Additionally, the product's output is 3 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include closed frame. The termination post is a 0.125" (3.18mm) long. The product eject-a-dip™, is a highly preferred choice for users. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 40-c182, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).
