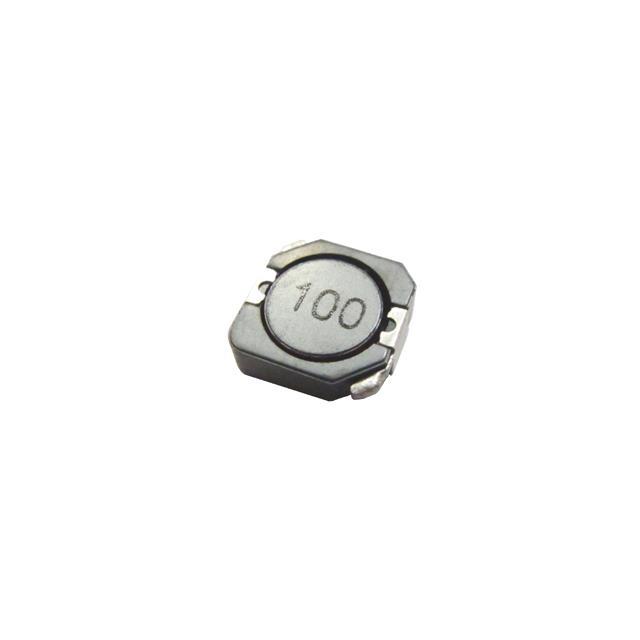

Pulse Electronics APSA00070748681M00

APSA00070748681M00 Pulse Electronics
Pulse Electronics

Product Information

Ratings:
AEC-Q200
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-40°C ~ 125°C
Package / Case:
Nonstandard
Tolerance:
±20%
Shielding:
Shielded
DC Resistance (DCR):
1.77Ohm Max
Height - Seated (Max):
0.189" (4.80mm)
Type:
Drum Core, Wirewound
REACH Status:
REACH Unaffected
Inductance:
680 µH
Package:
Tape & Reel (TR)
Size / Dimension:
0.287" L x 0.287" W (7.30mm x 7.30mm)
Current - Saturation (Isat):
200mA
standardLeadTime:
13 Weeks
Material - Core:
Ferrite
Current Rating (Amps):
270 mA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
2.1MHz
Features:
-
Mounting Type:
Surface Mount
Series:
APSA
Supplier Device Package:
-
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is APSA00070748681M00. It is rated with aec-q200. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 100 khz is its inductance frequency value. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 1.77ohm max. It has the maximum seated height of 0.189" (4.80mm). It comes in drum core, wirewound configuration. In addition, it is reach unaffected. The product has a 680 µh inductance value. It is shipped in tape & reel (tr) package . The product's diameters include 0.287" l x 0.287" w (7.30mm x 7.30mm). It has a 200ma saturation current. It has a long 13 weeks standard lead time. It is made from durable ferrite. Additionally, the product's output is 270 ma. Its typical moisture sensitivity level is 1 (unlimited). 2.1mhz is the self-resonant frequency of the product. The product is available in surface mount configuration. The product apsa, is a highly preferred choice for users. The product is designated with the ear99 code number.

pdf icon
Mult Devs Location 01/Aug/2021(PCN Assembly/Origin)
pdf icon
APSA Series, Automotive(Datasheets)
pdf icon
Pulse Larson REACH(Environmental Information)

Reviews

  • Be the first to review.

Enrgtech, with headquarter in Bradford, UK, is recognized as a leading innovator and distributor of electronic components, including Fixed Inductors with vast collections of different Pulse Electronics APSA00070748681M00 worldwide. We offer the latest Fixed Inductors from the branded manufacturers Pulse Electronics, which is a two-terminal component Pulse Electronics APSA00070748681M00, also known as the coil, choke, or reactor, capable of storing energy in the magnetic field by flowing electric current through it. The collection in Fixed Inductors contains various products like Pulse Electronics APSA00070748681M00 with APSA00070748681M00, which offers the advantages of small size, lightweight, stable structure, convenient use, and installation. Furthermore, these Fixed Inductors are comprised of different types of products (such as Pulse Electronics APSA00070748681M00) designed for circuits such as filtering, oscillation, trapping, and delay.

Get the latest and fault-tolerant Fixed Inductors with varieties of Pulse Electronics APSA00070748681M00 by visiting our stock collection pages to get the products from the comfort of your homes. Customers can get exclusive offers by ordering different varieties of Fixed Inductors based on various Pulse Electronics APSA00070748681M00 and other products. We ensure the delivery of Pulse Electronics APSA00070748681M00 in the exact condition, and customers can order Fixed Inductors based on their required applications. Access the details of the order(s) by tracking the ET23547658 of the product. For further queries about Pulse Electronics APSA00070748681M00 shipment, visit our website and email us at sales@enrgtech.co.uk or connect with our customer support team by calling at +44 (0) 3303 800 157.


FAQs

Yes. You can also search APSA00070748681M00 on website for other similar products.
We accept all major payment methods for all products including ET23547658. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with APSA00070748681M00 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Fixed Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics APSA00070748681M00. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics APSA00070748681M00.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23547658 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23547658.
Yes. We ship APSA00070748681M00 Internationally to many countries around the world.
