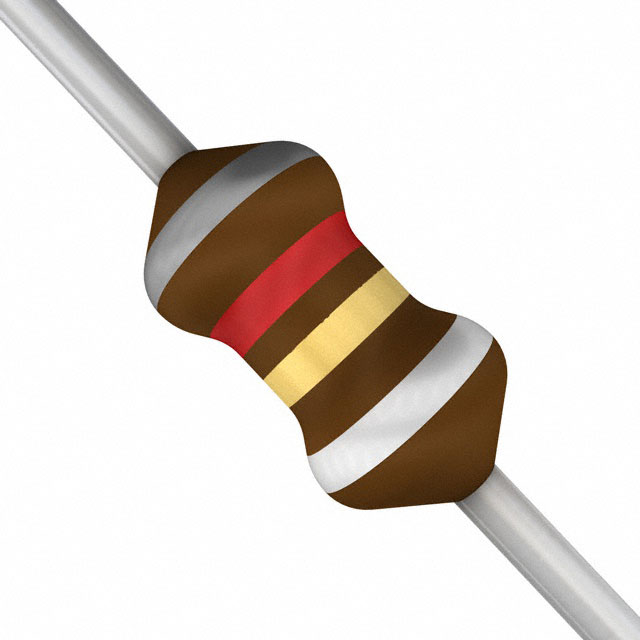

EPCOS - TDK Electronics B82141A1822K009
Product Information
Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
7.96 MHz
Operating Temperature:
-55°C ~ 125°C
Package / Case:
Axial
Tolerance:
±10%
Shielding:
Unshielded
DC Resistance (DCR):
520mOhm Max
Height - Seated (Max):
-
Type:
Drum Core, Wirewound
REACH Status:
REACH Affected
edacadModel:
B82141A1822K009 Models
Inductance:
8.2 µH
edacadModelUrl:
/en/models/3501276
Package:
Tape & Box (TB)
Size / Dimension:
0.118" Dia x 0.268" L (3.00mm x 6.80mm)
Current - Saturation (Isat):
-
Material - Core:
Ferrite
Current Rating (Amps):
450 mA
Moisture Sensitivity Level (MSL):
Not Applicable
Frequency - Self Resonant:
30MHz
Mounting Type:
Through Hole
Series:
SBC
Supplier Device Package:
-
Q @ Freq:
50 @ 7.96MHz
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search B82141A1822K009 on website for other similar products.
We accept all major payment methods for all products including ET20658030. Please check your shopping cart at the time of order.
You can order EPCOS - TDK Electronics brand products with B82141A1822K009 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Fixed Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EPCOS - TDK Electronics B82141A1822K009. You can also check on our website or by contacting our customer support team for further order details on EPCOS - TDK Electronics B82141A1822K009.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20658030 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EPCOS - TDK Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20658030.
Yes. We ship B82141A1822K009 Internationally to many countries around the world.
This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B82141A1822K009. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 7.96 mhz is its inductance frequency value. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in axial. It features ±10% of tolerance value. Furthermore, the product is shielded with unshielded. It allows DC resistance of 520mohm max. It comes in drum core, wirewound configuration. In addition, it is reach affected. The product has a 8.2 µh inductance value. It is shipped in tape & box (tb) package . The product's diameters include 0.118" dia x 0.268" l (3.00mm x 6.80mm). It is made from durable ferrite. Additionally, the product's output is 450 ma. Its typical moisture sensitivity level is not applicable. 30mhz is the self-resonant frequency of the product. The product is available in through hole configuration. The product sbc, is a highly preferred choice for users. It has a typical frequency of 50 @ 7.96mhz. The product is designated with the ear99 code number.
