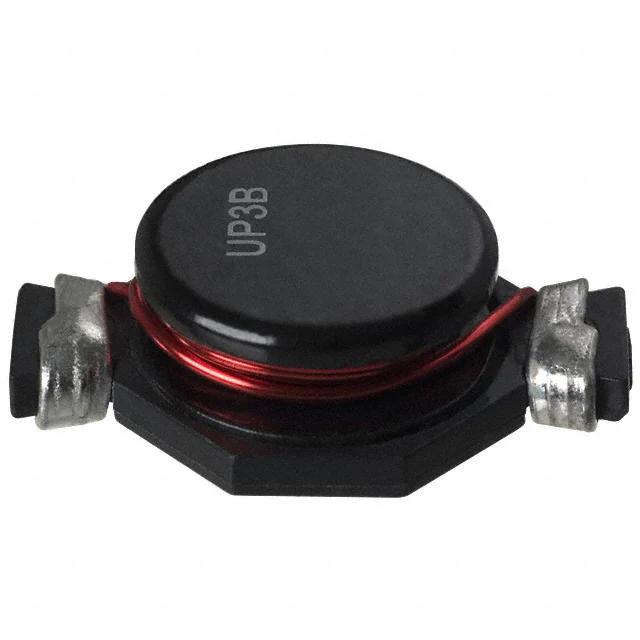

Eaton - Electronics Division UP3B-470

UP3B-470 Eaton - Electronics Division
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
RoHS non-compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Nonstandard
Tolerance:
±20%
Shielding:
Unshielded
DC Resistance (DCR):
108.2mOhm Max
Height - Seated (Max):
0.268" (6.80mm)
Type:
Drum Core, Wirewound
Inductance:
47 µH
Package:
Tape & Reel (TR)
Size / Dimension:
0.760" L x 0.520" W (19.30mm x 13.21mm)
Current - Saturation (Isat):
2.4A
Material - Core:
Ferrite
Current Rating (Amps):
1.9 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Mounting Type:
Surface Mount
Series:
UNI-PAC™
Supplier Device Package:
-
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is UP3B-470. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs non-compliant. 100 khz is its inductance frequency value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Furthermore, the product is shielded with unshielded. It allows DC resistance of 108.2mohm max. It has the maximum seated height of 0.268" (6.80mm). It comes in drum core, wirewound configuration. The product has a 47 µh inductance value. It is shipped in tape & reel (tr) package . The product's diameters include 0.760" l x 0.520" w (19.30mm x 13.21mm). It has a 2.4a saturation current. It is made from durable ferrite. Additionally, the product's output is 1.9 a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product uni-pac™, is a highly preferred choice for users. The product is designated with the ear99 code number.
