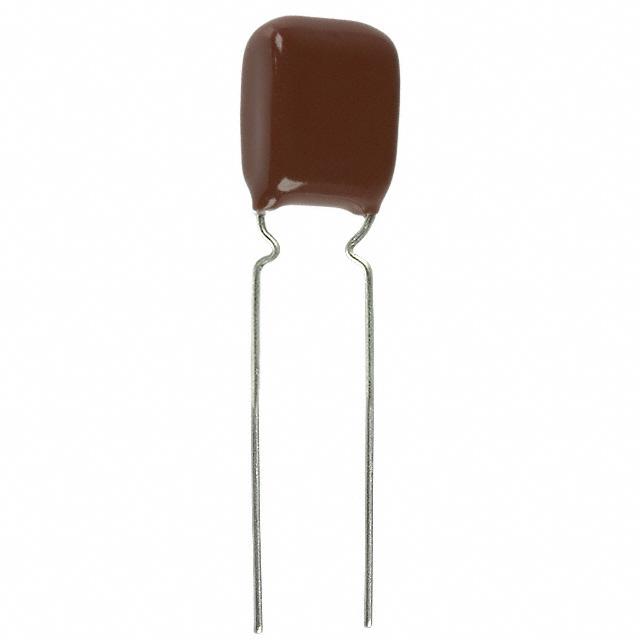

Panasonic Electronic Components ECQ-B1H224JF3

ECQ-B1H224JF3 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Ratings:
-
Voltage Rating - DC:
50V
HTSUS:
8532.25.0010
Voltage Rating - AC:
-
Capacitance:
0.22 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Radial
Tolerance:
±5%
edacadModel:
ECQ-B1H224JF3 Models
Height - Seated (Max):
0.492" (12.50mm)
Dielectric Material:
Polyester
Applications:
General Purpose
edacadModelUrl:
/en/models/136926
Package:
Tape & Box (TB)
Size / Dimension:
0.433" L x 0.236" W (11.00mm x 6.00mm)
Termination:
PC Pins
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
ECQ-B(F)
Lead Spacing:
0.295" (7.50mm)
Base Product Number:
ECQ-B1
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is ECQ-B1H224JF3. 50v of DC voltage rating. It is assigned with possible HTSUS value of 8532.25.0010. It provides a 0.22 µf of capacitance value. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in radial. It features ±5% of tolerance value. It has the maximum seated height of 0.492" (12.50mm). Moreover, the product is constructed from highly polyester dielectric material. The product is widely employed in general purpose. It is shipped in tape & box (tb) package . The product's diameters include 0.433" l x 0.236" w (11.00mm x 6.00mm). The product features pc pins termination style. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product ecq-b(f), is a highly preferred choice for users. It is assigned with 0.295" (7.50mm) of lead spacing. Moreover, it corresponds to ecq-b1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ECQ-(B,P,M,F,K),ECH-S 18/June/2008(PCN Obsolescence/ EOL)
pdf icon
ECQB(F) Type(Datasheets)
