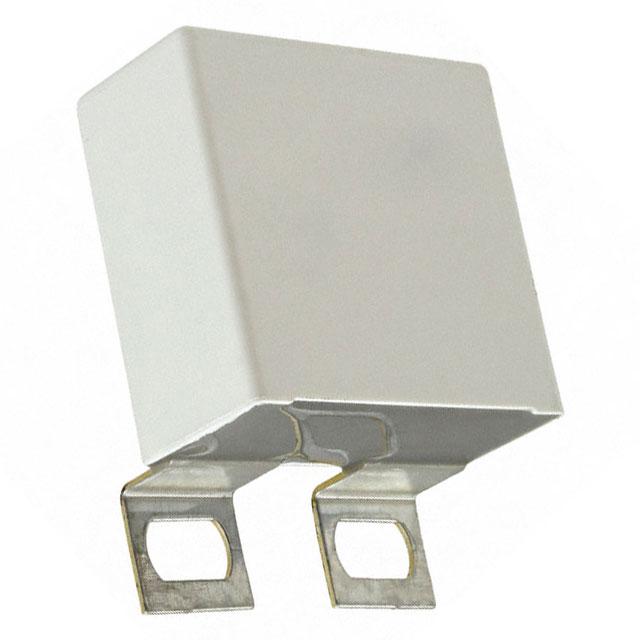

KEMET C4BSWBX3100ZAFJ
Product Information
Dimensions:
41.5 x 40 x 20mm
Mounting Type:
Panel Mount
Series:
C4BS
Equivalent Series Resistance:
23.3mΩ
Length:
41.5mm
Dissipation Factor:
5 x 10^-4 % @ 1 kHz
Height:
20mm
Lead Length:
14mm
Capacitance:
100nF
Depth:
40mm
Voltage:
700 V ac, 2000 V dc
Minimum Operating Temperature:
-40°C
Dielectric:
Polypropylene
Lead Pitch:
25.5mm
Maximum Operating Temperature:
+85°C
Tolerance:
±5%
Terminal Type:
Radial
Ratings:
-
Voltage Rating - DC:
2000V (2kV)
HTSUS:
8532.25.0030
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
23.3 mOhms
Capacitance:
0.1 µF
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Rectangular Box
Tolerance:
±5%
Height - Seated (Max):
1.575" (40.00mm)
Dielectric Material:
Polypropylene (PP), Metallized
Voltage Rating - AC:
700V
REACH Status:
REACH Unaffected
edacadModel:
C4BSWBX3100ZAFJ Models
Applications:
DC Link, DC Filtering; Snubber
edacadModelUrl:
/en/models/2783758
Package:
Bulk
Size / Dimension:
1.634" L x 0.787" W (41.50mm x 20.00mm)
Termination:
Screw Terminals
standardLeadTime:
20 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Chassis Mount
Series:
C4BS
Lead Spacing:
1.004" (25.50mm)
Base Product Number:
C4BSWB
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search C4BSWBX3100ZAFJ on website for other similar products.
We accept all major payment methods for all products including ET11683659. Please check your shopping cart at the time of order.
You can order KEMET brand products with C4BSWBX3100ZAFJ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Film Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of KEMET C4BSWBX3100ZAFJ. You can also check on our website or by contacting our customer support team for further order details on KEMET C4BSWBX3100ZAFJ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11683659 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "KEMET" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11683659.
Yes. We ship C4BSWBX3100ZAFJ Internationally to many countries around the world.
This is manufactured by KEMET. The manufacturer part number is C4BSWBX3100ZAFJ. The given dimensions of the product include 41.5 x 40 x 20mm. The product is available in panel mount configuration. The product c4bs, is a highly preferred choice for users. It has 23.3mω equivalent series resistance. Its accurate length is 41.5mm. It provides a dissipation factor of 5 x 10^-4 % @ 1 khz. In addition, the height is 20mm. The lead is 14mm long. It provides a 100nf of capacitance value. The product comes in 40mm depth. It carries a 700 v ac, 2000 v dc of voltage. Whereas, the minimum operating temperature of the product is -40°c. The dielectric options include polypropylene. The lead features 25.5mm pitch. It has a maximum operating temperature of +85°c. It features ±5% of tolerance value. The terminal is a radial type. 2000v (2kv) of DC voltage rating. It is assigned with possible HTSUS value of 8532.25.0030. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 23.3 mohms. It provides a 0.1 µf of capacitance value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in rectangular box. It has the maximum seated height of 1.575" (40.00mm). Moreover, the product is constructed from highly polypropylene (pp), metallized dielectric material. The product exhibits 700v of AC voltage rating. In addition, it is reach unaffected. The product is widely employed in dc link, dc filtering; snubber. It is shipped in bulk package . The product's diameters include 1.634" l x 0.787" w (41.50mm x 20.00mm). The product features screw terminals termination style. It has a long 20 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. It is assigned with 1.004" (25.50mm) of lead spacing. Moreover, it corresponds to c4bswb, a base product number of the product. The product is designated with the ear99 code number.
